Asc Engineered Solutions 362501801 Union 2 in 3000 Lb

Product Description

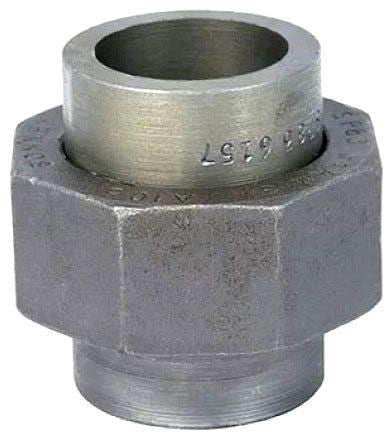

The ASC ENGINEERED SOLUTIONS 362501801 is a 2-inch socketweld ground joint union rated for 3000 lb pressure class service. Constructed from forged steel, this union is designed for high-pressure piping systems where a reliable, leak-resistant connection point is required. The ground joint seating surface provides a metal-to-metal seal, making it suitable for steam, oil, gas, and other demanding process fluid applications. Licensed pipefitters and mechanical contractors install this fitting in industrial and commercial piping runs where periodic disconnection and reconnection of pipe sections is necessary.

This union is suited for high-pressure industrial and commercial piping systems, including steam lines, hydraulic systems, and process piping. The socketweld end connection accepts pipe inserted directly into the socket, which is then fillet-welded in place, making it appropriate for systems where threaded connections are not permitted or preferred. The female threaded configuration on the union nut allows assembly and disassembly of the joint without disturbing the welded connections.

Key Features

• Forged steel construction for high-pressure and high-temperature service
• 3000 lb pressure class rating for demanding industrial applications
• 2-inch fitting size for standard pipe sizing compatibility
• Ground joint metal-to-metal seating surface for leak-resistant seal
• Socketweld end connection for permanent, welded piping systems
• Female threaded union nut for convenient field assembly and disassembly

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 2-inch socketweld piping systems operating at 3000 lb pressure class service conditions.

Installation Notes

Installation should be performed by a qualified pipefitter or welder in accordance with applicable codes, including ASME B31.1 or B31.3 as appropriate for the service. De-pressurize and isolate the piping system completely before cutting into an existing line or disassembling any union. Socketweld connections require proper gap spacing between pipe end and socket bottom prior to welding per applicable welding procedure specifications. Do not use pipe thread sealants or compounds on the ground joint seating surface.

Technical Specifications

• Fitting Material: Forged Steel
• Fitting Size: 2 inches
• Pressure Class: 3000 lb
• Connection Type: Socketweld Ground Joint
• Thread Type: Female Threaded
• Item Weight: 5.62 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 362501801
