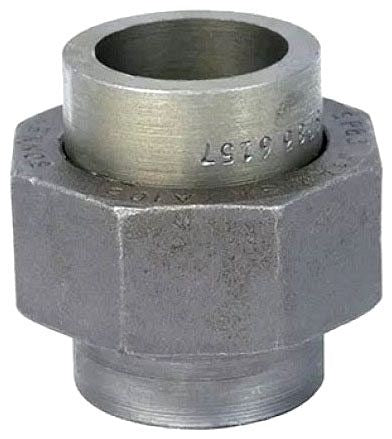

Asc Engineered Solutions 362501207 Socket Weld Union 1 in 3000 Lb

Product Description

The ASC ENGINEERED SOLUTIONS 362501207 is a socket weld ground joint union designed for high-pressure piping systems requiring a secure, leak-resistant connection. Built from forged steel, this 1-inch union is rated to 3000 lb pressure class, making it suited for demanding industrial and commercial piping applications. The female threaded design allows for straightforward assembly and disassembly without disturbing adjacent piping. At 1.76 pounds, it delivers the structural integrity expected in forged steel fittings. Licensed pipefitters and plumbers rely on this type of union where routine system access or future disconnection is anticipated.

This union is installed in socket weld piping systems operating at elevated pressures, including steam, hydraulic, and process piping in commercial and industrial facilities. The ground joint seating surface provides a metal-to-metal seal that holds under pressure cycling and thermal expansion common in these environments. It is appropriate for use wherever 3000 lb class socket weld fittings are specified in the system design.

Key Features

• Forged steel construction for high-strength, high-pressure service
• 1-inch fitting size with socket weld end connections
• 3000 lb pressure class rating for demanding piping applications
• Ground joint design provides a reliable metal-to-metal seal
• Female threaded type for secure assembly and disassembly
• Weighs 1.76 pounds — solid forged construction throughout

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-inch, 3000 lb class socket weld piping systems in industrial and commercial applications.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber in accordance with applicable codes such as ASME B16.11 and the applicable mechanical or process piping code. Depressurize and isolate the line completely before disassembling or installing any union fitting. Socket weld connections require proper gap spacing at the socket shoulder before welding per applicable welding procedure specifications. Do not over-tighten the ground joint nut, as this can damage the seating surface and compromise the seal.

Technical Specifications

• Fitting Material: Forged Steel
• Fitting Size: 1 inch
• Pressure Class: 3000 lb
• Type: Female Threaded
• Item Weight: 1.76 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 362501207
