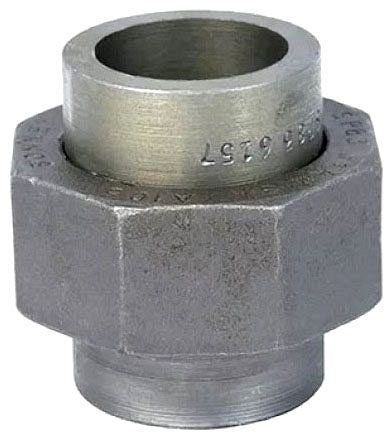

Asc Engineered Solutions 362500803 Socketweld Union 1/2 in 3000 Lb

Product Description

The ASC ENGINEERED SOLUTIONS 362500803 is a socketweld ground joint union designed for high-pressure piping systems. Constructed from forged steel, this 1/2 inch fitting is rated to 3000 lb pressure class, making it suitable for demanding industrial and commercial pipe installations. The ground joint design provides a metal-to-metal seat that resists leakage under pressure and thermal cycling. It features a female threaded connection configuration. Pipefitters and plumbers install this type of union where sections of pipe must be disconnected and reconnected during maintenance or system modifications.

This union is used in high-pressure steam, hydraulic, gas, and fluid piping systems where socketweld connections are specified. It is well suited for industrial facilities, refineries, power plants, and commercial mechanical rooms where 3000 lb class fittings are required by system design. The socketweld end prep requires proper fit-up and welding per applicable codes before the joint is placed in service.

Key Features

• Forged steel construction for strength and durability under high-pressure service
• 3000 lb pressure class rating suitable for demanding piping applications
• 1/2 inch fitting size for standard small-bore piping configurations
• Socketweld end connection for full-penetration welded joints
• Ground joint seat design provides a reliable metal-to-metal seal
• Female threaded type for straightforward assembly and disassembly

Compatibility

Designed as an OEM-style socketweld ground joint union for use in 1/2 inch, 3000 lb class forged steel piping systems where socketweld fittings are required per system specifications.

Installation Notes

Installation should be performed by a qualified pipefitter or welder in accordance with ASME B31.1, B31.3, or the applicable piping code for the system. The pipe system must be fully depressurized and isolated before removing or installing the union. Socketweld connections require proper gap clearance between the pipe end and the socket shoulder prior to welding. Do not apply service pressure until all welds have been completed and inspected per the applicable code requirements.

Technical Specifications

• Fitting Material: Forged Steel
• Fitting Size: 1/2 inch
• Pressure Class: 3000 lb
• Connection Type: Socketweld
• Thread Type: Female Threaded
• Weight: 0.75 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 362500803
