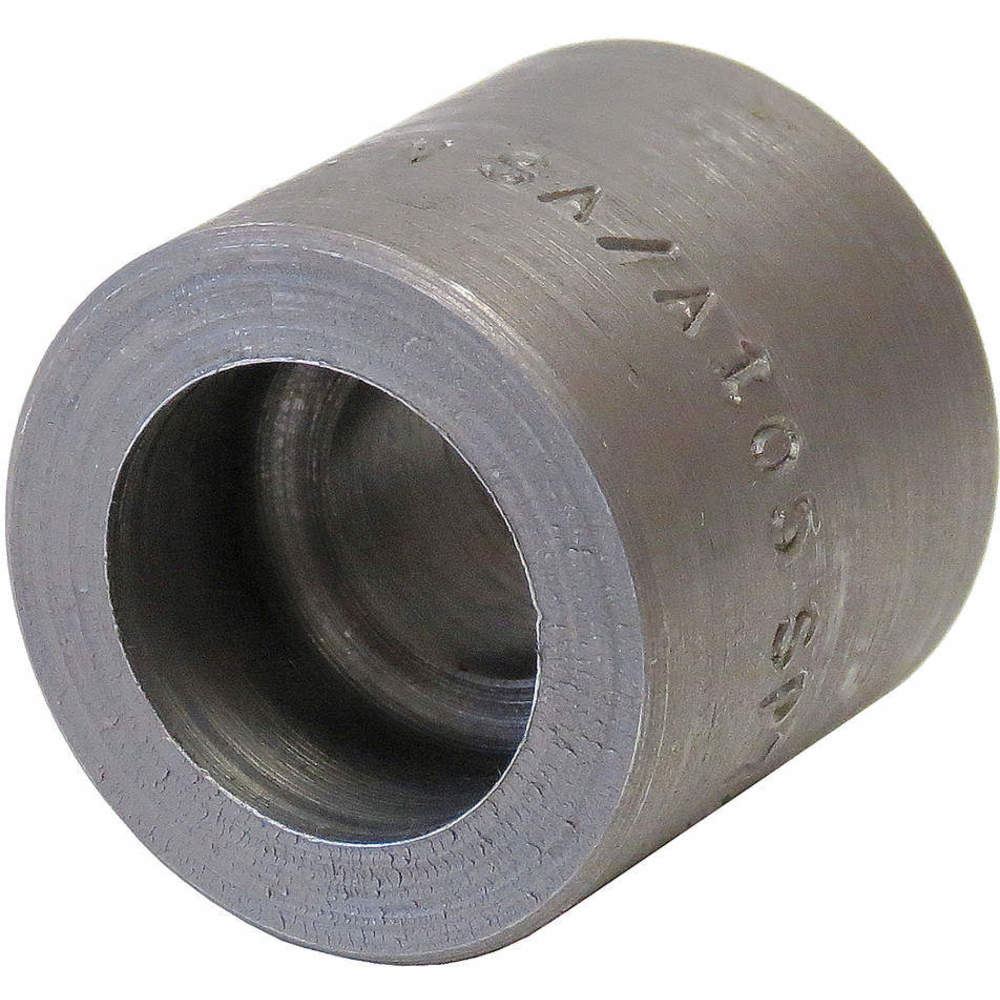

Asc Engineered Solutions 362205007 Socketweld Insert 1x3/4 in

Product Description

The ASC ENGINEERED SOLUTIONS 362205007 is a forged steel socketweld insert fitting rated for 3000 class service. This insert is designed to reduce a 1-inch socket connection to a 3/4-inch bore, providing a strong, permanent joint when welded in place. The socketweld configuration delivers full mechanical integrity under high-pressure piping conditions. Licensed pipefitters and pipe welders install this type of fitting in industrial and commercial piping systems where threaded connections are not acceptable and a welded joint is required.

This socketweld insert is suited for use in high-pressure industrial piping, process piping, and utility systems where forged steel construction is specified. The 3000 class pressure rating makes it appropriate for demanding service conditions in oil and gas, petrochemical, power generation, and mechanical piping applications. It is installed where a 1-inch line transitions to a 3/4-inch connection at a welded joint.

Key Features

• Forged steel construction for high strength and pressure integrity
• 3000 class pressure rating suitable for demanding industrial service
• 1-inch inlet to 3/4-inch bore reducing configuration
• Socketweld end type for full-penetration welded joints
• Compact insert design fits within existing socketweld fittings or pipe sockets

Compatibility

Designed as an OEM-style replacement or new-installation component for 3000 class forged steel socketweld piping systems requiring a 1-inch by 3/4-inch reducing insert connection.

Installation Notes

Installation should be performed by a qualified pipefitter or certified pipe welder in accordance with applicable codes including ASME B31.1 or B31.3 as required by the system specification. Isolate and depressurize the piping system completely before beginning any fitting work. The socket gap and weld preparation should conform to the applicable welding procedure specification. Do not use this fitting in applications exceeding its rated pressure class.

Technical Specifications

• Fitting Material: Forged Steel
• Type: Socketweld Insert
• Inlet Size: 1 inch
• Outlet Size: 3/4 inch
• Pressure Class: 3000
• Item Weight: 0.35 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 362205007
