Asc Engineered Solutions 362176208 Reducing Coupling 3000 Lb

Product Description

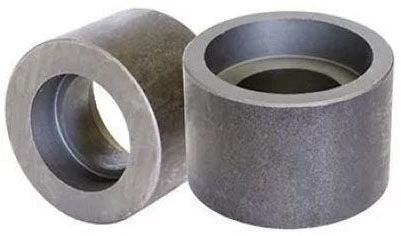

The ASC ENGINEERED SOLUTIONS 362176208 is a forged steel socketweld reducing coupling rated for 3000 lb service. It connects a 2-inch pipe to a 1.5-inch pipe using socket weld joints on both ends, making it a direct, high-pressure transition fitting. Forged steel construction provides the density and strength required for high-pressure piping systems. At 3.5 pounds, this is a solid, full-body fitting intended for permanent welded installations. Licensed pipefitters and welders are the typical installers on industrial and mechanical piping projects.

This reducing coupling is suited for industrial process piping, mechanical rooms, and high-pressure fluid or steam systems where a welded, leak-free connection is required between two pipe sizes. The socketweld design requires the pipe end to be inserted into the socket bore before fillet welding, providing a clean and strong joint. It is appropriate for applications demanding 3000 lb class pressure ratings in ferrous piping assemblies.

Key Features

• Forged steel construction for high-strength, high-pressure service
• 3000 lb pressure class rating
• Socketweld end connections on both sides for permanent fillet-welded joints
• Reduces from 2 inches to 1.5 inches in a single fitting
• Item weight of 3.5 pounds indicates full forged body without voids

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 3000 lb class forged steel socketweld piping systems transitioning between 2-inch and 1.5-inch pipe schedules.

Installation Notes

Installation requires a certified welder or licensed pipefitter following applicable codes such as ASME B31.1 or B31.3 for pressure piping. De-pressurize, drain, and isolate the piping system completely before cutting into any existing line. Pipe ends must be clean, deburred, and inserted to the proper depth in the socket bore before welding. Do not substitute socket weld fittings in systems requiring butt-weld joints without engineering review.

Technical Specifications

• Fitting Material: Forged Steel
• Fitting Size: 2 inches x 1.5 inches
• Pressure Rating: 3000 lb
• Connection Type: Socketweld Reducing
• Item Weight: 3.5 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 362176208
