Asc Engineered Solutions 362169005 Reducing Coupling 3000 Lb

Product Description

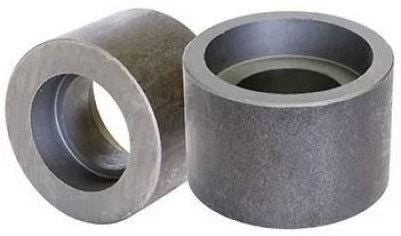

The ASC ENGINEERED SOLUTIONS 362169005 is a forged steel socketweld reducing coupling rated for 3000 lb pressure service. It transitions between a 1.25-inch and a 1-inch pipe in high-pressure piping systems using socket weld connections on both ends. Forged steel construction provides the strength and integrity required for demanding industrial and commercial applications. Licensed plumbers and pipefitters install this fitting in steam, oil, gas, and hydraulic systems where reliable pressure containment is critical.

This reducing coupling is suited for high-pressure piping installations in industrial facilities, commercial mechanical rooms, and process piping systems. It is commonly used wherever a pipe size reduction is needed along a run without compromising pressure rating. The socket weld end configuration makes it appropriate for systems where threaded connections are not preferred and full-penetration welds are required for leak-free performance.

Key Features

• Forged steel construction for high-strength, high-pressure service
• 3000 lb pressure rating suitable for demanding piping systems
• Socketweld end connections on both ends for full-penetration weld joints
• Reduces from 1.25-inch to 1-inch pipe in a single fitting
• Compact reducing coupling design minimizes overall installation footprint

Compatibility

Designed as an OEM-style replacement or new-installation socketweld reducing coupling for 3000 lb class forged steel piping systems accepting 1.25-inch inlet and 1-inch outlet connections.

Installation Notes

Installation should be performed by a qualified pipefitter or licensed plumber in accordance with applicable codes such as ASME B16.11 and the applicable piping system design specifications. Depressurize and isolate the piping system completely before cutting into any existing line. Socket weld fittings require proper gap clearance and full-penetration fillet welds performed by a certified welder. Do not use this fitting in systems exceeding its rated pressure class.

Technical Specifications

• Fitting Material: Forged Steel
• Fitting Size: 1.25 inches x 1 inch
• Pressure Rating: 3000 lb
• Connection Type: Socketweld Reducing
• Weight: 1.46 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 362169005
