Asc Engineered Solutions 362162802 Reducing Coupling 3/4x1/2

Product Description

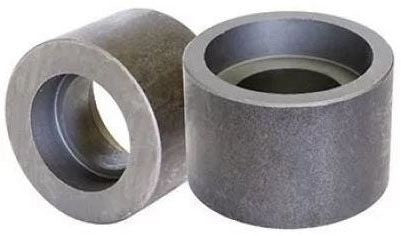

The ASC Engineered Solutions 362162802 is a forged steel socketweld reducing coupling rated for 3000 lb service. It connects pipe runs where a 3/4-inch line reduces to a 1/2-inch line, making it a standard fitting for high-pressure piping systems in industrial, commercial, and mechanical applications. The socketweld design requires fillet welds at both ends, creating a permanent, leak-resistant joint suitable for demanding pressure and temperature service. At 0.58 pounds, it is compact and fits standard socketweld piping assemblies. Licensed pipefitters and plumbers working on process, HVAC, or utility piping typically install this fitting.

This reducing coupling is used in forged steel socketweld piping systems where a pipe size transition from 3/4 inch to 1/2 inch is required. Typical applications include steam, water, oil, and gas distribution lines in commercial and industrial mechanical rooms, boiler rooms, and process piping installations. The 3000 lb pressure rating suits moderate- to high-pressure service conditions common in these environments.

Key Features

• Forged steel construction for strength and durability in high-pressure service
• 3000 lb pressure rating suitable for demanding mechanical and process piping
• Socketweld end connections provide a permanent, fillet-welded joint
• Reducing configuration transitions 3/4-inch pipe to 1/2-inch pipe in a single fitting
• Compact form factor at 0.58 pounds for easy handling and installation

Compatibility

Designed as an OEM-style replacement or new-installation fitting for forged steel socketweld piping systems rated at 3000 lb class, accepting 3/4-inch and 1/2-inch schedule pipe per standard socketweld dimensions.

Installation Notes

Installation is performed by qualified pipefitters or licensed plumbers in accordance with applicable codes such as ASME B31.1 or B31.3 for pressure piping. Shut off and depressurize the piping system completely before cutting into any existing line. Both socket ends require a fillet weld per the applicable welding procedure; do not use this fitting with threaded or compression connections. Follow proper pipe preparation, fit-up, and weld inspection procedures to ensure joint integrity.

Technical Specifications

• Fitting Material: Forged Steel
• Fitting Size: 3/4 inches x 1/2 inches
• Pressure Rating: 3000 lb
• Connection Type: Socketweld Reducing
• Item Weight: 0.58 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 362162802
