Asc Engineered Solutions 362061400 Full Coupling 3000 Lb

Product Description

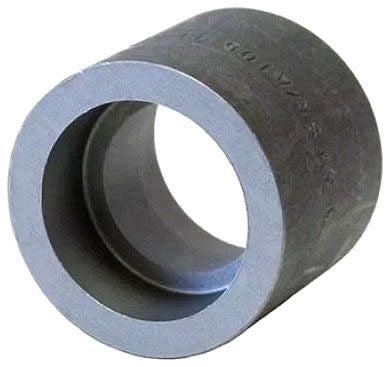

The ASC Engineered Solutions 362061400 is a forged steel socketweld full coupling rated for 3000 lb service. Designed for high-pressure piping systems, this full coupling connects two pipes of equal diameter in a straight-run configuration using a socketweld joint. At 1.5 inches in size, it fits standard pipe schedules common in industrial and commercial mechanical systems. Plumbers and pipefitters install this fitting where pressure demands exceed the capacity of standard threaded or slip-on connections, making it a reliable choice for steam, hydraulic, and process piping applications.

This full coupling is suited for industrial and commercial piping installations where socketweld construction is required. The socketweld design allows the pipe to be inserted into the socket before welding, producing a strong, leak-resistant joint. It is commonly used in mechanical rooms, process plants, refineries, and high-pressure utility systems where forged steel fittings are specified by code or engineering design.

Key Features

• Forged steel construction provides high strength and durability in demanding pressure applications
• 3000 lb pressure rating suitable for high-pressure piping systems
• 1.5-inch socketweld full coupling joins equal-diameter pipe in straight-run configurations
• Socketweld joint design delivers a strong, permanent, leak-resistant connection
• Compact full coupling form factor supports tight-space installations

Compatibility

Designed as an OEM-style socketweld full coupling for 1.5-inch forged steel piping systems rated to 3000 lb service class.

Installation Notes

Installation of socketweld fittings requires a certified welder following applicable codes such as ASME B31.1 or B31.3 depending on the system type. Before any welding or fitting work, shut down and depressurize the piping system completely and allow it to cool if handling steam or heated media. A small gap between the pipe end and the socket seat is typically required before welding to allow for thermal expansion during the weld process. This work is generally performed by licensed pipefitters or journeyman welders in compliance with local mechanical codes.

Technical Specifications

• Material: Forged Steel
• Fitting Size: 1.5 inches
• Pressure Rating: 3000 lb
• Connection Type: Socketweld Full Coupling
• Weight: 1.10 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 362061400
