Asc Engineered Solutions 362025603 Socketweld Tee 1 in 3000 Lb

Product Description

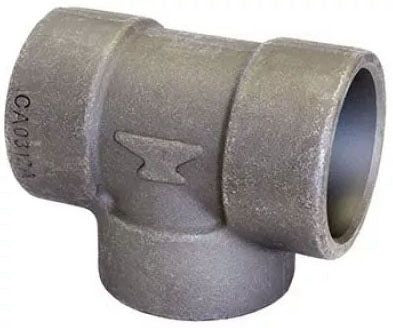

The ASC ENGINEERED SOLUTIONS 362025603 is a forged steel socketweld tee designed for high-pressure piping systems. This fitting connects three sections of pipe in a tee configuration using a socket-weld joint, which is fused by fillet welding around the outside of the socket. Rated at 3000 lb pressure class and sized at 1 inch, it is suited for demanding industrial and mechanical piping applications where leak-tight, permanent connections are required. Licensed pipefitters and plumbers install this type of fitting in process, utility, and HVAC piping systems.

This socketweld tee is appropriate for use in high-pressure steam, water, oil, and gas piping systems where threaded connections are not permitted or preferred. The 1-inch size fits standard 1-inch schedule pipe. It is commonly found in commercial mechanical rooms, industrial process lines, and plant utility systems requiring a 3000 lb-class forged steel fitting. Installation requires welding and is performed by qualified welders or pipefitters in accordance with applicable codes.

Key Features

• Forged steel construction for strength and durability in high-pressure service
• 3000 lb pressure class rating for demanding system requirements
• 1-inch socketweld end connections for fillet-welded, permanent joints
• Tee configuration allows branch takeoff from a main run of pipe
• Compact, full-port flow path through the tee body

Compatibility

Designed as an OEM-style replacement or new-installation socketweld tee fitting for 1-inch schedule pipe in 3000 lb-class forged steel piping systems.

Installation Notes

Installation of socketweld fittings must be performed by a qualified pipefitter or certified welder in accordance with ASME B31.1, B31.3, or the applicable piping code for the system. Isolate and depressurize the piping system completely before cutting in or replacing any fitting. Do not apply heat to a fitting while the line is under pressure or contains flammable media. Ensure proper socket gap and fillet weld size per code requirements before returning the system to service.

Technical Specifications

• Fitting Material: Forged Steel
• Fitting Size: 1 inch
• Pressure Class: 3000 lb
• Connection Type: Socketweld
• Item Weight: 1.32 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 362025603
