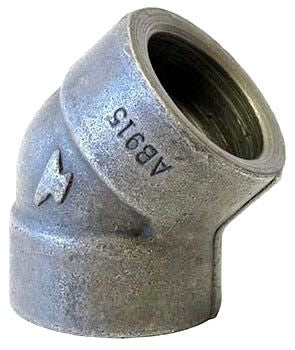

Asc Engineered Solutions 362014003 Socket Weld 45 Elbow 2in 3000lb

Product Description

The ASC ENGINEERED SOLUTIONS 362014003 is a forged steel socket weld 45-degree elbow rated for 3000 lb pressure service. This fitting is designed to change pipe direction at a 45-degree angle in high-pressure piping systems using a socket weld connection. At 2 inches nominal size and constructed from forged steel, it delivers the wall strength and joint integrity required in demanding industrial and mechanical piping applications. Licensed pipefitters and plumbers install this type of fitting where directional changes must be made without sacrificing pressure rating or structural integrity.

This elbow is suited for use in high-pressure steam, hydraulic, and process piping systems where socket weld connections are specified. The 3000 lb pressure class makes it appropriate for a wide range of industrial, commercial mechanical, and heavy-duty plumbing installations. It is typically installed in tight-space runs where a full 90-degree turn is not required and a 45-degree offset provides the necessary routing path.

Key Features

• Forged steel construction provides high strength and pressure integrity
• 45-degree elbow angle for directional changes in piping runs
• 3000 lb pressure class rating suitable for high-pressure service
• 2-inch nominal socket weld end connection for secure, weld-in installation
• Socket weld design eliminates threaded joint vulnerabilities in high-pressure lines

Compatibility

Designed as an OEM-style forged steel socket weld fitting for use in 2-inch, 3000 lb class high-pressure piping systems where 45-degree directional changes are required.

Installation Notes

Installation should be performed by a licensed pipefitter or qualified plumber in accordance with applicable ASME and local mechanical codes. The piping system must be fully depressurized and drained before fitting installation or removal. Socket weld fittings require proper gap spacing and certified weld procedures to achieve full-rated pressure capacity. Inspect weld joints post-installation per applicable code requirements before returning the system to service.

Technical Specifications

• Fitting Material: Forged Steel
• Fitting Size: 2 inches
• Elbow Degree: 45
• Pressure Class: 3000 lb
• Connection Type: Socket Weld
• Weight: 2.48 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 362014003
