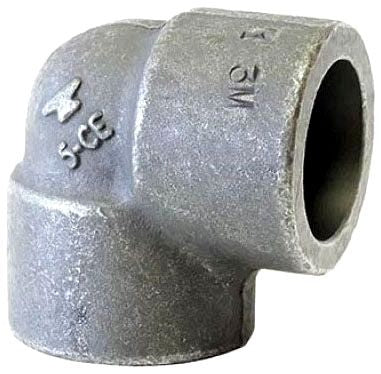

Asc Engineered Solutions 362001802 Socket Weld 90 Elbow 2 in 3000 Lb

Product Description

The ASC ENGINEERED SOLUTIONS 362001802 is a forged steel socket weld 90-degree elbow rated for 3000 lb pressure service. This fitting changes pipe direction by 90 degrees in high-pressure piping systems and is designed for socket weld installation, where the pipe end is inserted into the fitting socket and fillet welded in place. At 2 inches in size and constructed from forged steel, it is built for demanding industrial and commercial applications. Licensed pipefitters and pipe welders install this fitting in process piping, steam lines, hydraulic systems, and similar high-pressure service runs.

This elbow is suited for high-pressure piping systems in industrial plants, commercial mechanical rooms, and process facilities where 3000 lb class fittings are specified. It is used in applications requiring a reliable 90-degree directional change with a welded, leak-resistant joint. The socket weld configuration is a common choice in tight spaces where flanged or threaded connections are not practical.

Key Features

• Forged steel construction for strength and durability in high-pressure service
• 90-degree elbow geometry for right-angle pipe direction changes
• Socket weld end configuration for fillet-welded, permanent connections
• 3000 lb pressure class for demanding industrial and commercial piping systems
• 2-inch fitting size for standard 2-inch pipe

Compatibility

Designed as an OEM-style forged steel socket weld fitting for use with 2-inch pipe in 3000 lb class high-pressure piping systems.

Installation Notes

Installation should be performed by a qualified pipefitter or certified pipe welder in accordance with applicable codes such as ASME B16.11 and applicable facility piping specifications. The system must be fully depressurized and isolated before fitting installation. The pipe end should be properly prepared and inserted to the full depth of the socket before welding. Do not apply pressure to the system until all welds have been completed, inspected, and cleared per the applicable welding procedure.

Technical Specifications

• Fitting Size: 2 inches
• Elbow Degree: 90 degrees
• Type: Socket Weld
• Fitting Material: Forged Steel
• Pressure Class: 3000 lb
• Item Weight: 3.45 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 362001802
