Asc Engineered Solutions 362001208 Sw 90 Elbow 1 in 3000 Lb

Product Description

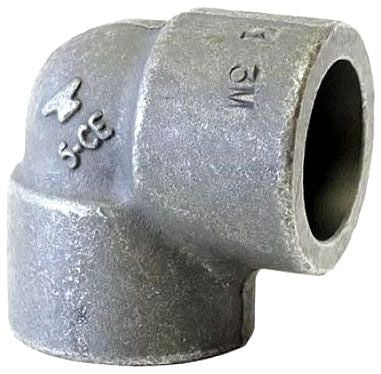

The ASC Engineered Solutions 362001208 is a forged steel socket weld 90-degree elbow rated for 3000 lb pressure class service. This fitting is designed to change pipe direction by 90 degrees in high-pressure piping systems. The socket weld design accepts pipe directly into the fitting bore, where it is secured with a fillet weld around the socket hub. At 1 inch nominal size and 3000 lb pressure class, this elbow suits demanding industrial and commercial piping applications where threaded fittings are not acceptable. Licensed pipefitters and plumbers typically specify this fitting in steam, compressed air, oil, and gas distribution lines.

This elbow is suited for high-pressure, high-temperature piping systems where leak-tight, permanent connections are required. The socket weld configuration is common in industrial plants, refineries, mechanical rooms, and commercial HVAC mechanical piping where 1-inch forged steel fittings at 3000 lb class are standard. It is not intended for use in low-pressure or plastic-compatible systems.

Key Features

• Forged steel construction for high-pressure and high-temperature service
• 90-degree elbow geometry for direction changes in tight piping runs
• Socket weld end type provides a strong, permanent fillet-welded joint
• 1 inch nominal size fits standard 1-inch schedule pipe
• 3000 lb pressure class rating for demanding service conditions

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-inch nominal forged steel socket weld piping systems rated at 3000 lb pressure class.

Installation Notes

Installation requires a certified or qualified pipefitter using appropriate welding equipment and procedures. Depressurize and isolate the piping system completely before cutting into any existing line. Socket weld fittings require a small gap between the pipe end and the socket shoulder prior to welding, per standard welding practice and applicable code requirements such as ASME B31.1 or B31.3. Verify material compatibility and pressure ratings against system design requirements before installation.

Technical Specifications

• Fitting Size: 1 inch
• Elbow Degree: 90 degrees
• Pressure Class: 3000 lb
• Connection Type: Socket Weld
• Fitting Material: Forged Steel
• Weight: 0.92 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 362001208
