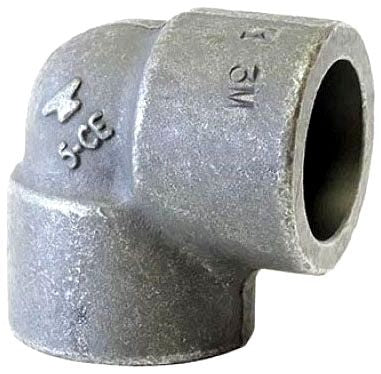

Asc Engineered Solutions 362001000 Socket Weld 90 Elbow 3/4 in

Product Description

The ASC Engineered Solutions 362001000 is a forged steel socket weld 90-degree elbow rated for 3000 lb pressure service. This fitting is used to change pipe direction by 90 degrees in high-pressure piping systems. The socket weld design accepts pipe ends into a recessed socket, providing a strong, leak-resistant joint when fillet-welded. Weighing 0.66 pounds, it is sized at 3/4 inch and constructed from forged steel for durability under demanding industrial and mechanical conditions. Licensed plumbers, pipefitters, and industrial pipe welders are the typical trades that install this fitting.

This elbow is suited for use in high-pressure piping applications including steam, hydraulic, and process piping systems where a 3000 lb pressure class socket weld fitting is required. The 3/4 inch size fits standard Schedule 80 and Schedule 160 pipe in commercial and industrial installations. It is commonly found in mechanical rooms, industrial plants, and process facilities where space is limited and a compact 90-degree directional change is needed.

Key Features

• Forged steel construction for high strength and pressure resistance
• 3000 lb pressure class rating for demanding high-pressure service
• Socket weld end connection provides a strong fillet-welded joint
• 90-degree elbow configuration for right-angle pipe direction changes
• 3/4 inch fitting size for compatibility with standard pipe schedules
• Compact design suitable for tight mechanical spaces

Compatibility

Designed as an OEM-style socket weld fitting for use with 3/4 inch pipe in 3000 lb pressure class piping systems.

Installation Notes

Installation should be performed by a qualified pipefitter or welder in accordance with applicable codes including ASME B31.1 or B31.3 as required by the system specification. Depressurize and isolate the piping system completely before cutting into any existing line. The socket weld joint requires a proper fillet weld around the full circumference of the fitting socket after seating the pipe with a standard gap clearance. Do not use this fitting in applications exceeding its rated pressure class.

Technical Specifications

• Fitting Size: 3/4 inches
• Elbow Degree: 90 degrees
• Pressure Class: 3000 lb
• Connection Type: Socket Weld
• Fitting Material: Forged Steel
• Item Weight: 0.66 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 362001000
