Asc Engineered Solutions 361501000 Threaded Union 3/4 in 3000 Lb

Product Description

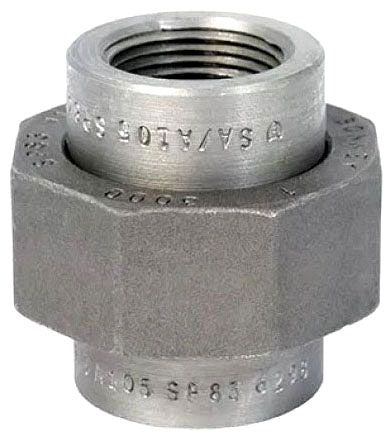

The ASC ENGINEERED SOLUTIONS 361501000 is a forged steel female threaded union rated for 3000 lb pressure class service. Built for high-pressure piping systems, this 3/4-inch union allows for disassembly of threaded pipe connections without cutting or rotating the pipe. It is suited for use in industrial, commercial, and mechanical piping applications where threaded connections are specified. Licensed plumbers and pipefitters typically install this fitting in steam, oil, gas, and high-pressure water lines where a reliable, removable connection point is required.

This union is designed for 3/4-inch threaded pipe in high-pressure applications. The 3000 lb pressure class rating makes it appropriate for demanding service environments including process piping, mechanical rooms, and industrial plant installations. It is installed anywhere a break-apart connection is needed in a threaded steel pipe system, making future maintenance or component replacement straightforward without disturbing adjacent piping.

Key Features

• Forged steel construction for strength and durability in high-pressure service
• 3000 lb pressure class rating suitable for demanding piping systems
• 3/4-inch female threaded ends for standard NPT pipe connections
• Union design allows pipe disassembly without rotating or cutting pipe
• Weighs 1.25 pounds per unit

Compatibility

Designed as an OEM-style forged steel threaded fitting for use in 3/4-inch NPT threaded piping systems rated for 3000 lb pressure class service.

Installation Notes

Installation of this union should be performed by a licensed plumber or pipefitter in accordance with applicable mechanical codes such as the IPC or ASME B31 piping standards. Depressurize and isolate the piping system completely before disassembling or installing any threaded fitting. Apply thread sealant or PTFE tape appropriate for the service medium to all male threads before assembly. Do not over-tighten; follow standard trade practices for NPT thread engagement on forged steel fittings.

Technical Specifications

• Fitting Material: Forged Steel
• Fitting Size: 3/4 inches
• Pressure Class: 3000 lb
• Connection Type: Female Threaded
• Weight: 1.25 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 361501000
