Asc Engineered Solutions 361332505 Threaded Hex Bushing 3000 Lb

Product Description

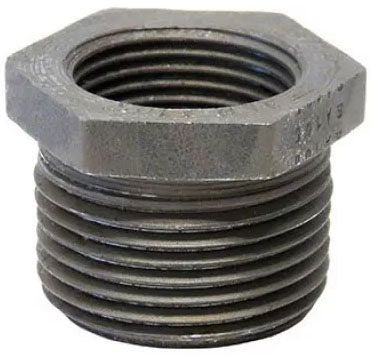

The ASC Engineered Solutions 361332505 is a forged steel threaded hex bushing rated for 3000 lb pressure service. It transitions pipe connections from 1.5 inches to 0.75 inches using standard threaded engagement. The hex body allows wrench installation without slipping or marring adjacent fittings. This bushing is suited for high-pressure piping systems in industrial, commercial, and mechanical applications. Licensed pipefitters and plumbers install this fitting where a reducing connection is needed at a threaded joint. The forged steel construction provides reliable strength at the connection point across a wide range of system pressures.

This threaded hex bushing is used in pressurized piping systems requiring a 1.5-inch to 0.75-inch reduction at a threaded connection point. Typical applications include steam, oil, gas, and water piping systems where 3000 lb class fittings are specified. The fitting is appropriate for both new construction and retrofit work in commercial mechanical rooms, industrial process piping, and heavy-duty plumbing installations.

Key Features

• Forged steel construction for high-pressure service
• 3000 lb pressure rating suitable for demanding system requirements
• Reduces from 1.5 inches to 0.75 inches in a single fitting
• Hex body design allows full wrench engagement during installation
• Threaded connection type for standard pipe thread assembly

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 3000 lb class threaded steel piping systems requiring a 1.5-inch by 0.75-inch reducing bushing connection.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber in accordance with applicable codes such as ASME B31.1 or ASME B31.3 for pressure piping. Depressurize and isolate the system completely before removing or installing any threaded fitting. Apply an appropriate thread sealant or PTFE tape to the male threads before assembly. Do not overtighten or use pipe wrenches on the hex body in a way that could crack or distort the fitting.

Technical Specifications

• Fitting Material: Forged Steel
• Fitting Size: 1.5 inches x 0.75 inches
• Pressure Rating: 3000 lb
• Type: Threaded Hex Bushing
• Item Weight: 0.70 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 361332505
