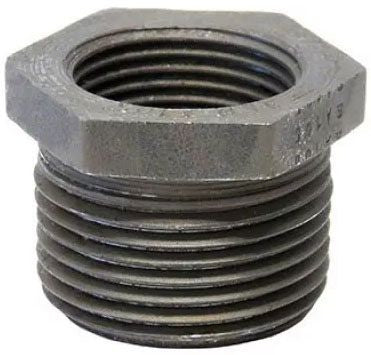

Asc Engineered Solutions 361330004 Threaded Hex Bushing

Product Description

The ASC Engineered Solutions 361330004 is a forged steel threaded hex bushing designed to reduce a 1/4-inch female thread to a 1/8-inch male thread in high-pressure piping systems. Rated to 3000 pounds pressure, this Class 3000 fitting is built for demanding industrial and commercial plumbing and pipefitting applications. The hex body provides a secure grip for wrench installation and removal. Licensed plumbers and pipefitters install this type of bushing when connecting pipes or components of differing thread sizes within a threaded assembly.

This hex bushing is suited for use in commercial and industrial piping systems where thread-size transitions are required between 1/4-inch and 1/8-inch NPT connections. Its forged steel construction handles elevated pressures common in steam, oil, gas, and water service lines. It is commonly installed in tight-space configurations where a compact, hex-body fitting provides both mechanical strength and wrench access.

Key Features

• Forged steel construction for high-strength, high-pressure service
• 3000 lb pressure rating suitable for demanding piping applications
• Reduces 1/4-inch female thread to 1/8-inch male thread
• Hex body design allows standard wrench installation
• Compact form factor for use in confined piping assemblies

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Class 3000 threaded piping systems requiring a 1/4-inch by 1/8-inch hex bushing reduction.

Installation Notes

Installation is performed by licensed plumbers or pipefitters. Shut off and depressurize the system fully before removing or installing any threaded fittings. Apply appropriate thread sealant or PTFE tape to male threads per applicable codes such as the IPC or IFGC. Do not overtighten forged steel fittings, as thread damage can compromise the pressure rating of the assembly.

Technical Specifications

• Fitting Material: Forged Steel
• Fitting Size: 1/4 inches x 1/8 inches
• Pressure Rating: 3000 lb
• Type: Threaded Hex Bushing
• Item Weight: 0.01 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 361330004
