Asc Engineered Solutions 361156003 Full Coupling 1 in 3000 Lb

Product Description

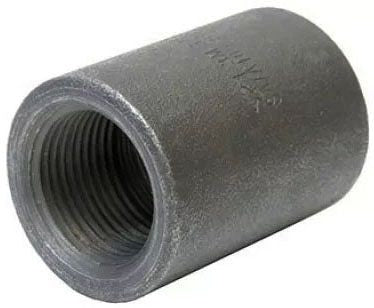

The ASC Engineered Solutions 361156003 is a forged steel threaded full coupling rated for 3000 lb pressure service. Full couplings connect two threaded pipe ends inline, extending a run or joining two male-threaded sections. At 1 inch in size, this fitting is a common choice in high-pressure piping systems across HVAC, plumbing, and industrial process lines. The forged steel construction delivers the wall thickness and mechanical strength required for demanding pressure and temperature conditions. Weighing 0.83 pounds, it is compact and easy to handle during installation. Licensed plumbers, pipefitters, and mechanical contractors typically install this type of fitting in threaded pipe assemblies.

This coupling is suited for 1-inch threaded pipe installations in commercial and industrial settings where higher pressure ratings are required. Typical applications include compressed air lines, steam distribution, hydraulic supply piping, and fire protection headers. The 3000 lb pressure rating makes it appropriate for Class 3000 high-pressure fittings per standard forged steel fitting classifications. It is installed wherever a full-length internally threaded coupling is needed to join or extend threaded pipe runs.

Key Features

• Forged steel construction for high-pressure and high-strength service
• 3000 lb pressure rating meets Class 3000 forged fitting standards
• 1-inch threaded full coupling joins two male-threaded pipe ends inline
• Compact size at 0.83 pounds for easy single-hand handling during assembly
• Threaded connection type eliminates the need for welding during installation

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-inch Class 3000 threaded forged steel piping systems.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber in accordance with applicable mechanical codes such as the IPC or ASME B31 piping standards. Depressurize and drain the system fully before removing or installing any threaded fittings. Apply an appropriate thread sealant or PTFE tape to the male threads before making up the joint. Do not over-torque the fitting, as forged steel threads can gall or crack if excessive force is applied without proper lubrication.

Technical Specifications

• Fitting Material: Forged Steel
• Fitting Size: 1 inch
• Pressure Rating: 3000 lb
• Type: Threaded Full Coupling
• Item Weight: 0.83 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 361156003
