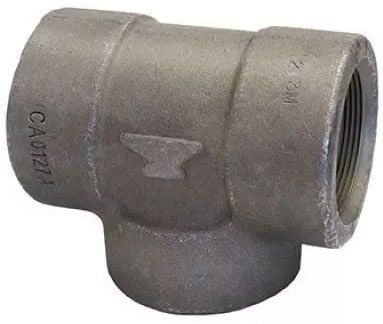

Asc Engineered Solutions 361120405 Forged Steel Tee 1-1/2 in

Product Description

The ASC ENGINEERED SOLUTIONS 361120405 is a forged steel threaded tee fitting rated for 3000 lb pressure class service. It measures 1-1/2 inches and is designed for high-pressure piping systems where reliable, leak-free branch connections are required. The forged steel construction provides the structural integrity and pressure tolerance demanded in industrial and commercial piping applications. Licensed plumbers, pipefitters, and mechanical contractors install this fitting in systems requiring full-port branch takeoffs at demanding service pressures.

This tee is suited for use in high-pressure steam, oil, gas, and water piping systems found in commercial mechanical rooms, industrial process piping, and heavy-duty plumbing installations. Its threaded end connections allow for assembly without welding, making it practical for retrofit work and installations where hot work permits are not available or practical. The 1-1/2-inch size fits standard schedule pipe in that nominal size range.

Key Features

• Forged steel construction for high-strength, high-pressure service
• 3000 lb pressure class rating suitable for demanding industrial and commercial applications
• 1-1/2-inch nominal size with threaded end connections
• Tee configuration provides full branch takeoff from main run
• Threaded connections allow tool-only assembly without welding or hot work
• Item weight of 7.05 pounds reflects solid forged construction

Compatibility

Designed as an OEM-style replacement or direct installation fitting for 1-1/2-inch threaded high-pressure piping systems rated to 3000 lb pressure class.

Installation Notes

Installation of this fitting should be performed by a licensed plumber or pipefitter in accordance with applicable mechanical and plumbing codes, including ASME and local jurisdiction requirements. Isolate and fully depressurize the piping system before disassembly or installation. Apply appropriate thread sealant or PTFE tape to all threaded connections per the system fluid service requirements. Do not exceed the rated pressure class of the fitting.

Technical Specifications

• Fitting Material: Forged Steel
• Fitting Size: 1-1/2 inches
• Pressure Class: 3000 lb
• Item Weight: 7.05 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 361120405
