Asc Engineered Solutions 361119001 Forged Steel Tee 1/8 in

Product Description

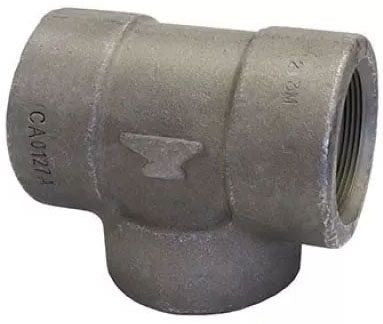

The ASC ENGINEERED SOLUTIONS 361119001 is a forged steel threaded tee designed for high-pressure piping systems. This fitting connects three sections of pipe at a 90-degree branch point using threaded connections on all three outlets. At a 3000 lb pressure class and 1/8 inch size, it is built for demanding industrial and mechanical applications where leak-tight, durable connections are required. Licensed plumbers and pipefitters install this type of fitting in process piping, steam lines, hydraulic systems, and similar high-pressure service environments.

This threaded tee is suited for small-bore, high-pressure piping runs in both commercial and industrial settings. The 1/8 inch size makes it appropriate for instrument lines, gauge connections, pilot lines, and similar low-flow, high-pressure branch applications. Its forged steel construction meets the demands of environments where cast or malleable iron fittings would not be appropriate.

Key Features

• Forged steel construction for superior strength and pressure resistance
• 3000 lb pressure class rating for high-pressure service
• 1/8 inch size suitable for instrument and gauge line connections
• Threaded on all three outlets for straightforward field assembly
• Compact form factor at 0.55 pounds per unit

Compatibility

Designed as an OEM-style replacement or new-installation forged steel threaded tee for 1/8 inch high-pressure piping systems rated at 3000 lb pressure class.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber in accordance with applicable mechanical codes such as the IPC or ASME B31.3. Depressurize and isolate the piping system completely before removing or installing any threaded fittings. Apply a compatible thread sealant or PTFE tape to all male threads before assembly, and tighten to appropriate engagement without over-torquing the small-bore threads. Inspect all connections for leaks after system pressure is restored.

Technical Specifications

• Fitting Material: Forged Steel
• Fitting Size: 1/8 inch
• Pressure Class: 3000 lb
• Item Weight: 0.55 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 361119001
