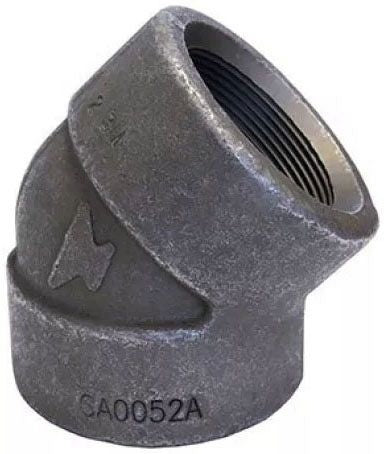

Asc Engineered Solutions 361111008 Forged Steel 45 Elbow 1 in

Product Description

The ASC ENGINEERED SOLUTIONS 361111008 is a forged steel 45-degree threaded elbow rated for 3000 lb pressure service. Designed for high-pressure piping systems, this fitting changes flow direction at a 45-degree angle using female threaded connections on both ends. The forged steel construction provides the strength and integrity required in demanding industrial and mechanical piping applications. At 1 inch nominal pipe size, it fits standard NPT threaded pipe and is well suited for steam, oil, gas, and hydraulic service lines. Licensed plumbers, pipefitters, and industrial mechanical contractors are the primary installers of this fitting.

This elbow is used in high-pressure piping systems where a 45-degree directional change is required without welding. Typical applications include steam distribution lines, compressed air systems, hydraulic lines, and oil and gas service piping. The female-threaded-by-female-threaded configuration accepts a threaded pipe or nipple on each end, making it a standard choice for maintenance, repair, and new construction in commercial and industrial mechanical systems.

Key Features

• Forged steel construction rated for 3000 lb pressure class service
• 45-degree elbow angle for directional change in tight piping layouts
• Female threaded by female threaded (NPT) connections on both ends
• 1 inch nominal pipe size for compatibility with standard threaded pipe
• Weighs 2.11 pounds per unit — solid, heavy-duty construction

Compatibility

Designed as an OEM-style threaded pipe fitting for 1 inch NPT high-pressure piping systems rated at 3000 lb pressure class.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber in accordance with applicable mechanical and plumbing codes. Depressurize and isolate the piping system fully before removing or installing any threaded fittings. Apply an appropriate thread sealant or PTFE tape to all male threads before assembly. Do not over-torque the fitting, as forged steel threaded connections can crack cast or weaker mating components if excessive force is used.

Technical Specifications

• Fitting Size: 1 inch
• Elbow Degree: 45 degrees
• Pressure Class: 3000 lb
• Fitting Material: Forged Steel
• Connection Type: Female Threaded x Female Threaded
• Weight: 2.11 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 361111008
