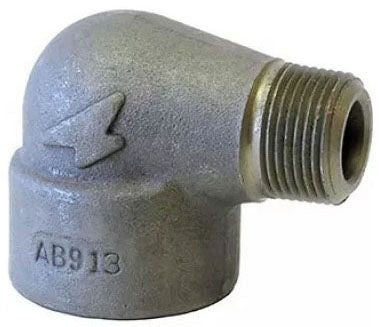

Asc Engineered Solutions 361109655 90 Degree Street Elbow 1-1/2 in

Product Description

The ASC Engineered Solutions 361109655 is a forged steel 90-degree street elbow designed for high-pressure threaded piping systems. With a 3000 lb pressure class rating and a 1-1/2 inch fitting size, this street elbow handles demanding industrial and mechanical piping applications. The male-threaded end allows it to thread directly into a female-threaded fitting or pipe, eliminating the need for a coupling and reducing the number of connections in a run. Plumbers and pipefitters install this fitting in steam, gas, oil, and high-pressure water systems where a reliable directional change is required. At 3.84 pounds, it is a solid, full-weight forged fitting built to ASME standards common to this pressure class.

This street elbow is suited for commercial and industrial piping systems operating under elevated pressure conditions. Typical applications include steam distribution, compressed air headers, hydraulic lines, and high-pressure gas piping. The 90-degree angle makes it appropriate for tight directional changes within a piping layout. Pipefitters and mechanical contractors working on boiler rooms, process piping, and utility systems will find this fitting compatible with standard NPT threaded connections at the 1-1/2 inch size.

Key Features

• Forged steel construction rated for 3000 lb pressure class service
• 90-degree street elbow configuration for direct male-to-female threaded installation
• 1-1/2 inch fitting size compatible with standard NPT threaded pipe
• Eliminates need for an additional coupling by combining male thread with elbow body
• Weighs 3.84 pounds, consistent with full-weight forged fittings at this pressure class

Compatibility

Designed as an OEM-style forged steel threaded fitting for 1-1/2 inch NPT high-pressure piping systems rated at 3000 lb pressure class.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber in accordance with applicable mechanical and plumbing codes, including ASME B16.11 requirements for forged fittings. Shut down and fully depressurize the system before removing or installing any threaded fittings. Apply an appropriate thread sealant or PTFE tape rated for the service medium before making up the connection. Do not use pipe wrenches on the fitting body in a way that could damage threads or distort the fitting.

Technical Specifications

• Fitting Material: Forged Steel
• Fitting Size: 1-1/2 inches
• Elbow Degree: 90 degrees
• Pressure Class: 3000 lb
• Type: Street Elbow Male Threaded
• Item Weight: 3.84 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 361109655
