Asc Engineered Solutions 361109457 Street Elbow 90 Deg 1/2 in

Product Description

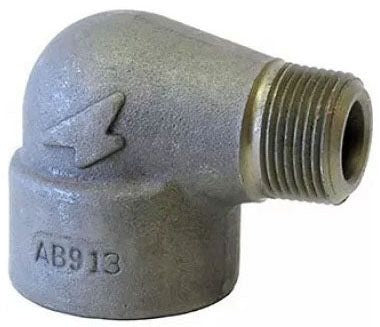

The ASC Engineered Solutions 361109457 is a 90-degree street elbow fitting machined from forged steel and rated for Class 3000 service. It features a male-threaded end that threads directly into a female-threaded fitting or pipe without a nipple, allowing compact directional changes in high-pressure piping runs. At 0.53 pounds and sized for 1/2-inch pipe, it is well suited for tight installations where space and pressure integrity both matter. Licensed plumbers, pipefitters, and mechanical contractors install this type of fitting in steam, hydraulic, and industrial process piping systems.

This fitting is intended for use in high-pressure threaded piping assemblies where a 90-degree change of direction is required without the addition of a separate nipple. The Class 3000 pressure rating makes it appropriate for demanding industrial and commercial mechanical applications. Its forged steel construction provides the strength and durability needed in steam lines, compressed-air systems, and similar services where lower-rated fittings are not acceptable.

Key Features

• 90-degree street elbow configuration eliminates the need for a separate nipple at the directional change
• Forged steel construction for high strength and pressure integrity
• Class 3000 pressure rating suitable for demanding industrial service
• 1/2-inch male-threaded end mates directly into female-threaded fittings or pipe
• Compact form factor at 0.53 pounds for use in space-constrained installations

Compatibility

Designed as an OEM-style replacement or new-installation threaded street elbow for Class 3000 forged steel piping systems using 1/2-inch NPT threaded connections.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber in accordance with applicable mechanical codes such as the ASME B31 piping standards and local authority requirements. Depressurize and isolate the system completely before removing or installing any threaded fittings. Apply an appropriate thread sealant or PTFE tape to all male threads before assembly, and tighten to the fitting manufacturer's recommended engagement — do not over-torque forged steel fittings, as excess force can crack female-threaded ports in softer bodies. Inspect the completed joint for leaks before returning the system to service.

Technical Specifications

• Fitting Size: 1/2 inch
• Elbow Degree: 90 degrees
• Type: Street Elbow Male Threaded
• Pressure Class: 3000 lb
• Fitting Material: Forged Steel
• Item Weight: 0.53 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 361109457
