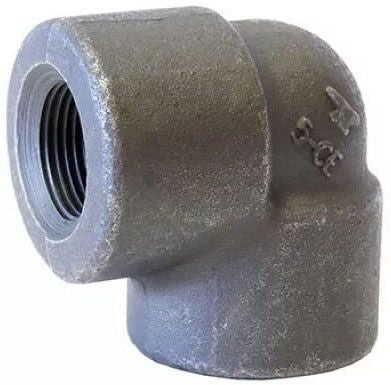

Asc Engineered Solutions 361101603 Forged Steel 90 Elbow 1.5 in

Product Description

The ASC Engineered Solutions 361101603 is a forged steel 90-degree threaded elbow rated for 3000 lb pressure class service. It features a female-threaded-by-female-threaded end configuration in a 1-1/2 inch size, making it a heavy-duty fitting suited for high-pressure piping systems. Weighing 5.75 pounds, this elbow is built for demanding industrial and commercial applications where pressure integrity and material strength are non-negotiable. Licensed plumbers and pipefitters are the primary installers of fittings in this pressure class.

This fitting is used in high-pressure piping installations across industrial, commercial, and mechanical system environments. The 3000 lb pressure class rating makes it appropriate for applications such as steam lines, hydraulic systems, and other high-pressure fluid or gas distribution networks where forged steel construction is required by code or engineering specification. It is installed wherever a 90-degree directional change is needed in a threaded pipe run of 1-1/2 inch nominal size.

Key Features

• Forged steel construction for high-pressure, high-strength service
• 90-degree elbow geometry for right-angle directional changes in pipe runs
• 3000 lb pressure class rating for demanding system applications
• Female-threaded-by-female-threaded ends for standard threaded pipe connections
• 1-1/2 inch nominal fitting size

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-1/2 inch threaded pipe systems requiring 3000 lb pressure class forged steel fittings.

Installation Notes

This fitting is installed by licensed plumbers or pipefitters in accordance with applicable mechanical and piping codes. Depressurize and isolate the pipe section fully before removing or installing any fitting. Apply appropriate thread sealant compound or PTFE tape to all male threads prior to makeup. Do not over-torque threaded connections, as forged steel fittings can damage mating pipe threads if excess force is applied.

Technical Specifications

• Fitting Material: Forged Steel
• Fitting Size: 1-1/2 inches
• Elbow Degree: 90 degrees
• Pressure Class: 3000 lb
• Connection Type: Female Threaded x Female Threaded
• Item Weight: 5.75 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 361101603
