Asc Engineered Solutions 361101207 Forged Steel 90 Elbow 1 in

Product Description

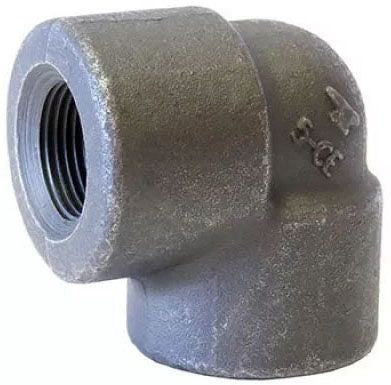

The ASC ENGINEERED SOLUTIONS 361101207 is a forged steel 90-degree threaded elbow designed for high-pressure piping systems. The fitting connects two female-threaded pipe ends at a right angle and carries a 3000 lb pressure class rating, making it suitable for demanding industrial and commercial applications. At 1 inch in size, this elbow fits standard pipe installations where direction changes are required. Plumbers, pipefitters, and mechanical contractors install this type of fitting in steam, water, oil, and gas lines. The forged steel construction provides the structural integrity needed to handle elevated pressures without deformation or leakage at the joint.

This elbow is used in industrial plants, commercial mechanical rooms, refineries, and heavy-duty plumbing systems where 3000 lb class forged fittings are specified. It is suited for both new construction and retrofit piping work involving carbon steel pipe in 1-inch nominal sizes. Female-threaded connections on both ends allow for straightforward installation with standard male-threaded pipe or nipples. Typical applications include steam distribution, compressed air lines, hydraulic systems, and process piping where high-pressure ratings are required.

Key Features

• 90-degree elbow geometry for right-angle direction changes in piping runs
• 3000 lb pressure class rating for high-pressure service
• Forged steel construction for superior strength and pressure resistance
• Female threaded on both ends for direct connection to male-threaded pipe
• 1-inch fitting size compatible with standard nominal pipe sizing

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-inch nominal threaded steel piping systems rated at 3000 lb pressure class.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable mechanical and plumbing codes, including ASME and local jurisdiction requirements. Shut off and depressurize the system completely before removing or installing any threaded fittings. Apply an appropriate pipe thread sealant or PTFE tape to all male threads before assembly. Do not over-torque threaded connections, as this can damage the fitting threads or compromise the seal.

Technical Specifications

• Fitting Size: 1 inch
• Elbow Degree: 90 degrees
• Pressure Class: 3000 lb
• Fitting Material: Forged Steel
• Connection Type: Female Threaded x Female Threaded
• Item Weight: 2.43 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 361101207
