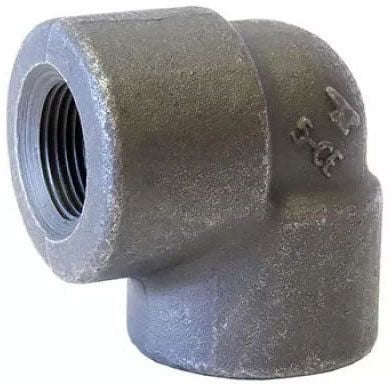

Asc Engineered Solutions 361101009 Forged Steel 90 Elbow 3/4 in

Product Description

The ASC ENGINEERED SOLUTIONS 361101009 is a forged steel 90-degree threaded elbow rated for 3000 lb pressure service. The fitting measures 3/4 inch and connects two female threaded pipe ends at a right angle. It is designed for use in high-pressure piping systems where a directional change is required. Licensed plumbers, pipefitters, and mechanical contractors install this type of fitting in industrial, commercial, and heavy-duty residential applications. The forged steel construction provides the structural integrity needed to handle demanding pressure ratings and elevated service conditions.

This elbow is suited for 3/4-inch threaded piping assemblies operating at high pressure. It is commonly found in steam, hydraulic, oil, gas, and water piping systems where a 3000 lb pressure class fitting is specified. The female-by-female threaded configuration allows it to be threaded directly onto male-threaded pipe or nipple ends, making it a straightforward component in standard pipe assembly work.

Key Features

• 90-degree elbow geometry for right-angle directional changes in piping runs
• Forged steel construction rated to 3000 lb pressure class
• 3/4-inch fitting size with female threaded x female threaded end connections
• Weighs 1.35 pounds per unit, indicating a solid, heavy-duty forged body
• Suitable for high-pressure steam, gas, oil, and water service applications

Compatibility

Designed as an OEM-style replacement or new-install fitting for 3/4-inch female threaded piping systems requiring a 3000 lb pressure class 90-degree elbow.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber in accordance with applicable mechanical and plumbing codes. Shut down and depressurize the piping system completely before removing or installing any threaded fittings. Apply an appropriate thread sealant or PTFE tape to male threads before assembly and tighten to the pipe manufacturer and code specifications. Do not over-torque forged steel threaded fittings, as this can damage thread engagement.

Technical Specifications

• Fitting Size: 3/4 inches
• Elbow Degree: 90 degrees
• Pressure Class: 3000 lb
• Connection Type: Female Threaded x Female Threaded
• Fitting Material: Forged Steel
• Item Weight: 1.35 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 361101009
