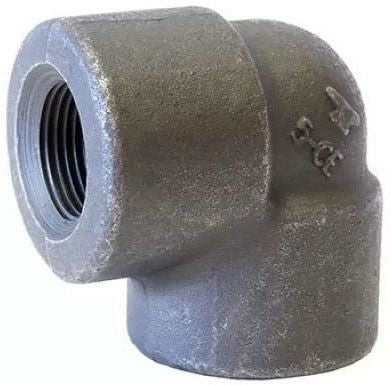

Asc Engineered Solutions 361100803 90 Deg Elbow 1/2 in 3000 Lb

Product Description

The ASC Engineered Solutions 361100803 is a forged steel 90-degree elbow fitting designed for high-pressure threaded piping systems. Rated at 3000 lb pressure class, this fitting accepts female threaded connections on both ends and is sized at 1/2 inch. It is built for use in demanding industrial, mechanical, and plumbing applications where a reliable directional change in piping is required. Licensed plumbers and pipefitters install this type of fitting in gas, steam, oil, and high-pressure water systems. The forged steel construction provides the strength and integrity needed to handle elevated pressures without deformation or joint failure.

This elbow is suited for residential and commercial piping installations where a 90-degree change of direction is needed at 1/2 inch connections. The female-threaded-by-female-threaded configuration accepts standard male-threaded pipe or nipples on both ports, making it straightforward to integrate into existing threaded systems. Typical applications include boiler piping, compressed air lines, hydraulic systems, and high-pressure process lines where forged fittings are specified over cast alternatives.

Key Features

• Forged steel construction rated for 3000 lb pressure class service
• 90-degree elbow for directional change in threaded piping runs
• 1/2 inch size with female threaded connections on both ends
• Weighs 0.82 pounds for easy handling during installation
• Suitable for high-pressure gas, steam, oil, and water piping systems

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1/2 inch threaded piping systems requiring 3000 lb pressure class forged steel elbows.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable codes such as the IPC or IFGC. Shut off and depressurize the piping system completely before removing any existing fittings or threading in the new elbow. Apply an appropriate thread sealant or PTFE tape to male threads before making up the joint, and tighten to a firm connection without over-torquing the fitting. Inspect for leaks after restoring system pressure.

Technical Specifications

• Fitting Material: Forged Steel
• Fitting Size: 1/2 inch
• Elbow Degree: 90 degrees
• Pressure Class: 3000 lb
• Connection Type: Female Threaded x Female Threaded
• Weight: 0.82 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 361100803
