Asc Engineered Solutions 361013402 Forged Steel 45 Elbow 1.5 in

Product Description

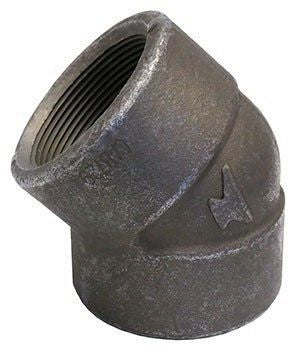

The ASC ENGINEERED SOLUTIONS 361013402 is a 1-1/2 inch forged steel threaded 45-degree elbow rated for 2000 lb service. It is designed to change pipe direction by 45 degrees in high-pressure threaded piping systems. The forged steel construction provides the strength and durability required in industrial and mechanical piping applications. At 1.83 pounds, this compact fitting is sized for 1-1/2 inch pipe and is installed by licensed pipefitters, plumbers, and mechanical contractors working on steam, gas, oil, or water systems where pressure demands exceed standard fittings.

This elbow is suited for use in commercial and industrial piping systems requiring Class 2000 forged fittings. Typical applications include steam distribution, compressed air, natural gas, and hydraulic lines where a 45-degree directional change is needed. The threaded end connections allow installation without welding, making it practical for retrofits and maintenance work in confined spaces or in systems that must return to service quickly.

Key Features

• Forged steel construction rated for 2000 lb pressure class service
• 45-degree elbow angle for mid-angle directional changes in piping runs
• 1-1/2 inch threaded connections for tool-only installation without welding
• Compact and durable at 1.83 pounds for a fitting of this pressure class
• Appropriate for steam, gas, oil, and water service in industrial and commercial settings

Compatibility

Designed as an OEM-style Class 2000 forged steel threaded fitting for use in 1-1/2 inch threaded piping systems conforming to ASME B16.11 or equivalent standards for high-pressure mechanical applications.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber in accordance with applicable mechanical and plumbing codes. Shut off and depressurize the system fully before removing or installing any threaded fittings. Apply appropriate thread sealant or PTFE tape to male threads before assembly and tighten to the appropriate engagement using pipe wrenches. Do not over-torque forged fittings, as this can crack or deform the threads.

Technical Specifications

• Fitting Size: 1-1/2 inches
• Elbow Degree: 45 degrees
• Pressure Class: 2000 lb
• Fitting Material: Forged Steel
• Connection Type: Threaded
• Item Weight: 1.83 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 361013402
