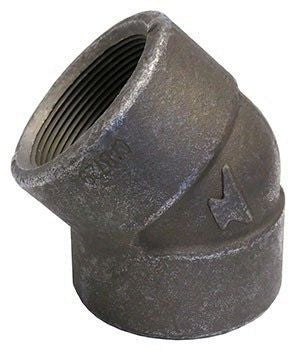

Asc Engineered Solutions 361013006 Forged Steel 45 Elbow 1 in

Product Description

The ASC ENGINEERED SOLUTIONS 361013006 is a forged steel threaded 45-degree elbow rated for Class 2000 service. It is designed to redirect piping flow at a 45-degree angle in high-pressure piping systems. The 1-inch fitting threads onto standard NPT pipe and delivers the structural integrity that forged steel construction provides over cast alternatives. Licensed plumbers and pipefitters install this fitting in process, industrial, and mechanical piping systems where pressure ratings and material reliability are critical. At 0.90 pounds, it is a compact, durable component built for long service life in demanding applications.

This elbow is suited for use in commercial and industrial piping installations where a 45-degree change of direction is required on a 1-inch threaded line. Typical applications include steam, water, oil, and gas distribution systems operating within Class 2000 pressure limits. It is a common component in mechanical rooms, process plants, and similar environments where forged steel fittings are specified by code or engineering design.

Key Features

• Forged steel construction provides superior strength compared to cast fittings
• 45-degree angle for moderate directional change without sharp flow restriction
• Class 2000 pressure rating for high-pressure piping service
• 1-inch threaded connection for compatibility with standard NPT pipe
• Compact and lightweight at 0.90 pounds for easy handling during installation

Compatibility

Designed as an OEM-style threaded pipe fitting for use on 1-inch Class 2000 forged steel piping systems with standard NPT threaded connections.

Installation Notes

Installation is typically performed by a licensed plumber or pipefitter in accordance with applicable mechanical and plumbing codes. Shut off and depressurize the piping system completely before removing or installing any threaded fittings. Apply an appropriate thread sealant or PTFE tape to the male threads before assembly. Do not over-tighten threaded connections, as this can damage the fitting or mating pipe threads.

Technical Specifications

• Fitting Size: 1 inch
• Elbow Degree: 45 degrees
• Pressure Class: 2000
• Fitting Material: Forged Steel
• Connection Type: Threaded (NPT)
• Item Weight: 0.90 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 361013006
