Asc Engineered Solutions 361012602 Forged Steel 45 Elbow 1/2 in

Product Description

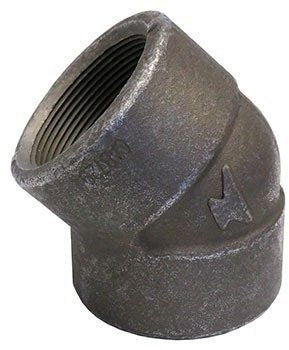

The ASC ENGINEERED SOLUTIONS 361012602 is a 1/2-inch forged steel threaded 45-degree elbow rated for Class 2000 service. It is designed to redirect pipe runs at a 45-degree angle in high-pressure piping systems. The forged steel construction provides the strength and pressure resistance required in demanding industrial and commercial plumbing or piping installations. This fitting is installed by licensed plumbers and pipefitters working on threaded pipe systems where directional changes must be made within tight tolerances and under elevated pressure conditions.

This elbow is suited for use in industrial process piping, mechanical rooms, and commercial plumbing systems where Class 2000 forged steel fittings are specified. The 1/2-inch threaded end connections make it compatible with standard NPT-threaded pipe of the same nominal size. It is a common fitting in steam, oil, gas, and water piping configurations where a 45-degree change in direction is required.

Key Features

• Forged steel construction for high-pressure Class 2000 service
• 45-degree elbow geometry for angled pipe direction changes
• 1/2-inch nominal size with threaded end connections
• Lightweight at 0.47 pounds, minimizing load on piping systems
• Threaded ends for straightforward field installation without welding

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1/2-inch NPT threaded piping systems requiring Class 2000 forged steel fittings.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable mechanical and plumbing codes, including ASME and local jurisdictional requirements. Depressurize and isolate the pipe section completely before removing or installing any threaded fitting. Apply an appropriate thread sealant or PTFE tape to the male threads before makeup, and tighten to proper hand-tight-plus wrench turns per fitting size — do not overtighten forged steel threaded connections. Inspect threads for damage before installation.

Technical Specifications

• Fitting Size: 1/2 inches
• Elbow Degree: 45 degrees
• Fitting Material: Forged Steel
• Pressure Class: 2000
• Connection Type: Threaded
• Weight: 0.47 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 361012602
