Asc Engineered Solutions 311017800 Street 90 Elbow 4 in

Product Description

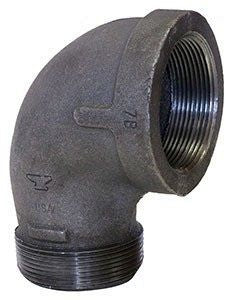

The ASC Engineered Solutions 311017800 is a 4-inch threaded malleable iron street 90-degree elbow with a galvanized coating. Street elbows have one male-threaded end and one female-threaded end, allowing a direct connection to a pipe without an additional nipple. This fitting is used to make a 90-degree directional change in threaded piping systems. Licensed plumbers and pipefitters install this fitting in commercial and industrial piping runs where a compact, 90-degree turn is required.

This street elbow is suited for use in threaded iron piping systems common in commercial plumbing, fire protection, and industrial process applications. The 4-inch size handles high-flow mains and larger branch lines. The galvanized finish provides corrosion resistance for use in wet or exposed environments. Its domestic manufacture supports project specifications that require domestically produced components.

Key Features

• 90-degree street configuration with one male and one female threaded end for compact directional changes
• Malleable iron construction provides strength and resistance to mechanical stress in threaded assemblies
• Galvanized coating protects against corrosion in wet and exposed service conditions
• 4-inch threaded size suits large-diameter piping mains and high-flow applications
• Domestically manufactured fitting for projects with domestic-sourcing requirements

Compatibility

Designed as an OEM-style replacement and standard fitting for 4-inch threaded malleable iron piping systems in commercial plumbing, fire protection, and industrial piping applications.

Installation Notes

Installation is performed by a licensed plumber or pipefitter. Shut off and depressurize the piping system completely before removing or installing any threaded fitting. Apply an approved pipe thread sealant or PTFE tape to the male threads before assembly and tighten to the appropriate engagement per applicable IPC or IFGC guidelines. Do not over-tighten malleable iron fittings, as the material can crack under excessive torque.

Technical Specifications

• Fitting Size: 4 inches
• Fitting Material: Malleable Iron
• Coating: Galvanized
• Elbow Degree: 90
• Type: Street
• Item Weight: 11.06 pounds
• Origin: Domestic

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 311017800
