Asc Engineered Solutions 311017404 Street 90 Elbow 2.5 in

Product Description

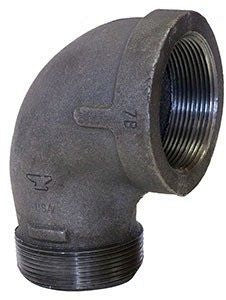

The ASC ENGINEERED SOLUTIONS 311017404 is a 2.5-inch threaded malleable iron street 90-degree elbow with a galvanized coating. It is designed for use in threaded pipe systems where a 90-degree directional change is required. As a street fitting, one end accepts a male-threaded pipe or fitting directly, reducing the need for an additional coupling. The galvanized finish provides corrosion resistance for use in a range of wet and dry service environments. This fitting is domestically manufactured and weighs 4.02 pounds. It is typically installed by licensed plumbers and pipefitters working on water, gas, or mechanical piping systems.

This fitting is suited for residential and commercial threaded piping applications. It is commonly used in water supply lines, gas distribution piping, and general mechanical systems where malleable iron fittings are specified. The street configuration allows inline connection without additional fittings, which is useful in tight spaces or where reducing the fitting count is a priority. Plumbers and pipefitters select this elbow when a durable, code-compliant 90-degree change of direction is needed in a 2.5-inch threaded iron pipe system.

Key Features

• 2.5-inch nominal size for use with standard 2.5-inch threaded pipe
• Street fitting design with one male and one female threaded end for direct inline connection
• 90-degree elbow angle for right-angle directional changes in piping runs
• Malleable iron construction for strength and resistance to mechanical stress
• Galvanized coating for corrosion resistance in wet service environments
• Domestically manufactured

Compatibility

Designed as an OEM-style replacement and standard-use fitting for 2.5-inch NPT threaded malleable iron pipe systems in plumbing and mechanical applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and IFGC requirements where gas service is involved. Shut off and depressurize the pipe system completely before removing or installing any threaded fittings. Apply appropriate thread sealant or PTFE tape to all male threads before assembly. Do not overtighten, as malleable iron fittings can crack under excessive torque.

Technical Specifications

• Fitting Size: 2.5 inches
• Elbow Degree: 90
• Type: Street
• Fitting Material: Malleable Iron
• Coating: Galvanized
• Item Weight: 4.02 pounds
• Origin: Domestic

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 311017404
