Asc Engineered Solutions 310524608 Black Malleable Iron Tee Sch 80

Product Description

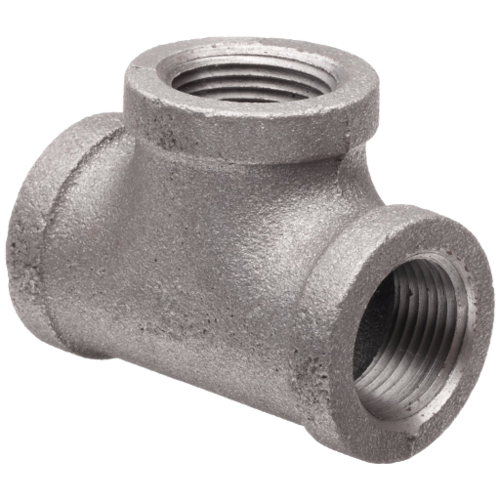

The ASC ENGINEERED SOLUTIONS 310524608 is a black malleable iron threaded tee fitting rated for Schedule 80 service. It features a 1-1/2 inch run on both the inlet and outlet ends and a 3/4 inch branch outlet, making it a reducing tee configuration. The 300-class pressure rating and malleable iron construction make this fitting suitable for demanding mechanical piping applications. Plumbers, pipefitters, and mechanical contractors install this type of fitting in gas distribution, steam, and industrial pipe systems where threaded iron connections are required.

This tee is intended for use in commercial and industrial piping systems where Schedule 80 malleable iron fittings are specified. Typical applications include natural gas distribution headers, steam piping, compressed air lines, and general mechanical systems that require NPT threaded connections. The reducing branch configuration allows a main 1-1/2 inch line to be tapped with a 3/4 inch branch without additional reducers in many layouts.

Key Features

• Malleable iron construction provides durability in high-pressure and elevated-temperature service
• Schedule 80 rated fitting suitable for demanding mechanical and gas piping systems
• 300-class pressure rating for added margin in commercial applications
• Reducing branch design: 1-1/2 inch run x 3/4 inch branch eliminates need for separate reducer in many installations
• Threaded NPT connections for standard wrench installation without special tools
• Black finish provides corrosion resistance appropriate for indoor and sheltered piping runs

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 80 threaded black malleable iron piping systems using standard NPT thread connections.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable codes such as the International Fuel Gas Code (IFGC) or International Plumbing Code (IPC). Shut off and depressurize the piping system completely before disassembling any existing connections. Apply an approved pipe thread sealant or PTFE tape rated for the intended service medium to all male NPT threads before assembly. Do not over-tighten threaded iron fittings, as excess torque can crack the casting.

Technical Specifications

• Material: Black Malleable Iron
• Schedule: SCH 80
• Pressure Class: 300
• Connection Type: Threaded NPT
• Run Size: 1-1/2 inches x 1-1/2 inches
• Branch Size: 3/4 inches
• Finish: Black

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 310524608
