Asc Engineered Solutions 310067400 Malleable 45 Y Branch 1-1/2 in

Product Description

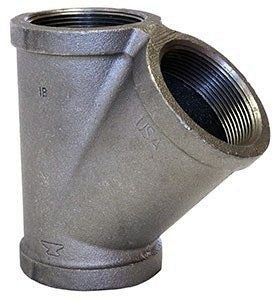

The ASC Engineered Solutions 310067400 is a black malleable iron lateral 45-degree Y branch fitting sized at 1-1/2 inches. It is used to split or combine pipe flow at a 45-degree angle, providing a directional change with reduced turbulence compared to sharp tee configurations. The malleable iron construction gives the fitting the strength and ductility needed to handle mechanical stress in threaded pipe systems. At 2 pounds, it is a solid, full-weight fitting built for durable service. Licensed plumbers and pipefitters install this type of fitting in gas distribution, steam, and industrial piping systems.

This lateral 45 Y branch is suited for residential and commercial piping applications where a branch takeoff at a 45-degree angle is required. Typical installations include low-pressure gas distribution lines, steam and condensate return systems, and industrial black iron piping networks. The black iron finish is standard for gas service piping applications. The 1-1/2 inch fitting size fits standard Schedule 40 threaded pipe of the same nominal diameter.

Key Features

• Malleable iron construction for strength and resistance to cracking under mechanical stress
• 45-degree lateral Y branch configuration allows flow splitting or combining at an angle
• 1-1/2 inch fitting size for compatibility with standard nominal pipe sizes
• Black iron finish suitable for gas service and industrial piping applications
• Threaded connection type for straightforward installation with standard pipe threaders and wrenches

Compatibility

Designed as an OEM-style replacement and standard fitting for use with 1-1/2 inch black malleable iron threaded pipe systems in residential and commercial gas, steam, and industrial piping applications.

Installation Notes

This fitting is installed by licensed plumbers or pipefitters in accordance with applicable codes such as the IFGC or ASME B31 standards for gas and pressure piping. Shut off gas supply and depressurize the line completely before disassembling any threaded connections. Apply appropriate pipe thread sealant rated for the service medium before hand-tightening and wrench-tightening the joint. Do not over-torque malleable iron fittings, as the material can crack if excessive force is applied.

Technical Specifications

• Fitting Size: 1-1/2 inches
• Weight: 2 pounds
• Material: Malleable Iron
• Finish: Black
• Branch Angle: 45 degrees
• Fitting Type: Lateral Y Branch

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 310067400
