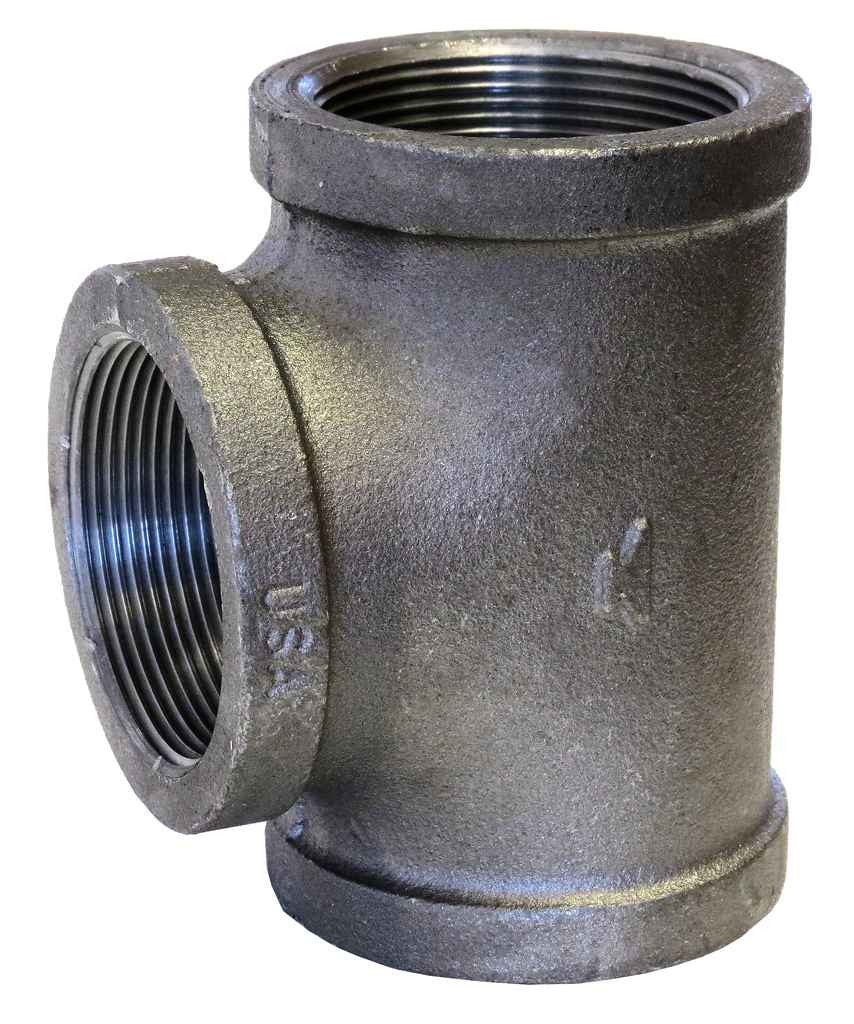

Asc Engineered Solutions 310030804 Black Malleable Iron Tee

Product Description

The ASC Engineered Solutions 310030804 is a 2-inch black malleable iron tee fitting used in threaded pipe assemblies across plumbing and mechanical systems. All three ports are female pipe thread (FPT) sized at 2 inches, conforming to ASME B1.20.1 thread standards. The fitting is manufactured to ASTM A-197 malleable iron specifications and rated to ASME B16.3 pressure standards at standard strength. At 2.52 pounds, it provides the durability and thread integrity expected in commercial and industrial piping installations. Licensed plumbers and pipefitters are the primary installers of this fitting in new construction and retrofit applications.

This tee is suited for residential and commercial plumbing, gas distribution, and mechanical piping systems where threaded black iron pipe connections are required. The three equal 2-inch FPT ports allow a branch connection off a main run without reducing flow path size. UL and FM listings make this fitting appropriate for fire protection and other code-governed piping systems where listed components are required. It is commonly used in supply lines, branch take-offs, and distribution manifolds in pipe networks assembled with standard schedule pipe.

Key Features

• All three ports are 2-inch FPT conforming to ASME B1.20.1
• Malleable iron construction meets ASTM A-197 material specification
• Pressure rating per ASME B16.3 at standard (STD) strength
• Black finish suitable for gas and mechanical piping applications
• UL and FM listed for use in code-governed and fire protection systems
• Equal-outlet tee design maintains full 2-inch port size on all connections

Compatibility

Designed as an OEM-style replacement and standard-service fitting for threaded black malleable iron pipe systems using 2-inch schedule pipe conforming to standard pipe dimensions.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and IFGC requirements where gas service applies. Shut off supply pressure and depressurize the line before disassembly or fitting installation. Apply appropriate thread sealant or PTFE tape to all male threads before assembly, and hand-tighten before using a pipe wrench to achieve a proper seal. Do not over-torque; follow applicable code guidelines for threaded iron fittings.

Technical Specifications

• Material: Malleable Iron (ASTM A-197)
• Finish: Black
• Connection Type: FPT (all three ports)
• Port Size: 2 inches (all three ports)
• Thread Specification: ASME B1.20.1
• Pressure Rating Specification: ASME B16.3
• Strength: Standard (STD)
• UL/FM Listed: Yes
• Weight: 2.52 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 310030804
