Asc Engineered Solutions 310017009 90 Degree Street Elbow

Product Description

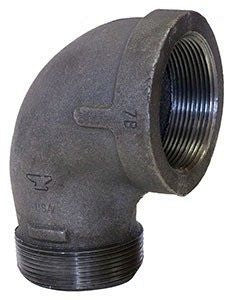

The ASC Engineered Solutions 310017009 is a 1-1/2 inch malleable iron 90-degree street elbow with a black coating and threaded connections. Street elbows combine a male end and a female end in a single fitting, allowing a direction change without a separate nipple. This fitting is used in threaded pipe assemblies for gas distribution, compressed air lines, and general-purpose black iron piping systems. Licensed plumbers, pipefitters, and HVAC mechanics install this type of fitting as part of rough-in and service work on low-pressure piping systems. It is domestically manufactured and weighs 1.44 pounds.

This fitting is suited for residential and light commercial piping applications where a 90-degree change of direction is required on a 1-1/2 inch threaded run. Common uses include natural gas supply lines, propane distribution piping, and industrial air systems. The black coating distinguishes it from galvanized fittings and is standard practice for gas piping per IFGC requirements. Installation follows standard NPT threaded assembly procedures.

Key Features

• 90-degree street configuration with one male NPT end and one female NPT end for compact direction changes
• Malleable iron construction provides strength and impact resistance in threaded piping systems
• Black coating meets standard requirements for gas piping applications
• 1-1/2 inch fitting size for common residential and commercial pipe runs
• Domestically manufactured

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-1/2 inch NPT threaded black iron piping systems.

Installation Notes

Installation is performed by licensed plumbers, pipefitters, or HVAC technicians. Shut off all gas or compressed air supply and verify the line is depressurized before disassembling or assembling any threaded fittings. Apply an approved pipe thread sealant or PTFE tape rated for the intended service medium to all male threads before assembly. All gas piping installations must comply with applicable local codes and IFGC requirements, including pressure testing after assembly.

Technical Specifications

• Fitting Size: 1-1/2 inches
• Elbow Degree: 90
• Type: Street
• Fitting Material: Malleable Iron
• Coating: Black
• Connection: Threaded
• Item Weight: 1.44 pounds
• Import or Domestic: Domestic

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 310017009
