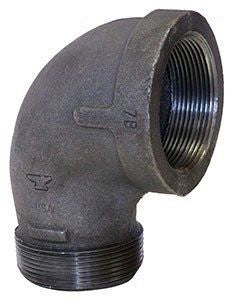

Asc Engineered Solutions 310015805 90 Degree Street Elbow 1/4 in

Product Description

The ASC Engineered Solutions 310015805 is a 1/4 inch black malleable iron 90 degree street elbow designed for threaded pipe systems. This domestically produced fitting provides a compact directional change in a piping run by accepting a male-threaded pipe on one end and a female-threaded connection on the other, eliminating the need for an additional nipple. The black coating is standard for gas and air distribution applications. Weighing 0.10 pounds, this compact fitting is a staple component for plumbers, pipefitters, and HVAC technicians assembling or repairing low-pressure threaded iron pipe systems.

This street elbow is suited for residential and light commercial applications including natural gas distribution, compressed air lines, and water supply piping where NPT threaded malleable iron fittings are specified. The 90 degree angle makes it appropriate for tight-space installations where a standard elbow and nipple combination would not fit. Domestically manufactured to standard malleable iron fitting dimensions, it integrates directly into Schedule 40 black iron pipe assemblies common in gas appliance rough-in and mechanical room piping work.

Key Features

• 90 degree street configuration accepts male thread on one end and female thread on the other
• 1/4 inch fitting size for small-diameter threaded pipe runs
• Malleable iron construction provides durability in gas, air, and fluid service
• Black coating standard for gas line and industrial piping applications
• Domestically manufactured to NPT threaded fitting standards

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1/4 inch NPT threaded malleable iron pipe systems in residential and commercial mechanical applications.

Installation Notes

Installation is performed by licensed plumbers or pipefitters following applicable code requirements such as the IFGC or IPC. Apply an approved thread sealant or PTFE tape rated for the service medium before threading the fitting onto the pipe. Do not over-tighten, as malleable iron fittings can crack under excessive torque. Shut off and depressurize any gas or fluid supply before disassembling or modifying the piping system.

Technical Specifications

• Fitting Size: 1/4 inch
• Elbow Degree: 90
• Type: Street
• Fitting Material: Malleable Iron
• Coating: Black
• Item Weight: 0.10 pounds
• Import or Domestic: Domestic

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 310015805
