Asc Engineered Solutions 308016401 Blind Flange 3 in 125

Product Description

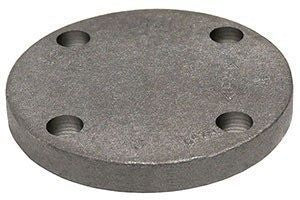

The ASC Engineered Solutions 308016401 is a 3-inch Class 125 cast iron blind flange designed to seal off the end of a pipe, fitting, or valve in low-to-medium pressure piping systems. The blind configuration means there is no center bore — the face is solid, providing a pressure-rated termination point. With an outer diameter of 7.5 inches and a weight of 7.92 pounds, this flange is built for durability in demanding installations. The black coating provides corrosion resistance for typical service environments. This is a domestically produced fitting suitable for plumbing, water distribution, and industrial piping applications.

This blind flange is used in residential and commercial piping systems where a flanged pipe end must be capped or blanked off temporarily or permanently. Common applications include water mains, process piping, pump systems, and valve isolation points. The Class 125 pressure rating aligns with standard cast iron flanged fittings used throughout municipal, industrial, and mechanical piping installations. It is typically installed by licensed plumbers or pipefitters working on flanged cast iron pipe systems.

Key Features

• Solid blind face — no center bore — provides a secure, pressure-rated pipe termination
• Class 125 pressure rating compatible with standard cast iron flanged piping systems
• 3-inch fitting size with a 7.5-inch outer diameter for proper bolt-circle alignment
• Cast iron construction for strength and longevity in demanding service conditions
• Black coating for corrosion resistance in typical pipe service environments
• Domestically produced fitting

Compatibility

Designed as an OEM-style replacement or new-installation blind flange for Class 125 cast iron flanged piping systems with a 3-inch pipe size.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter following applicable plumbing codes, including IPC requirements for flanged connections. Shut off and depressurize the piping system fully before removing any existing flange or installing this blind flange. Use the appropriate gasket material rated for the service fluid between the flange faces, and torque bolts evenly in a cross pattern to ensure a uniform seal. Do not over-stress the cast iron flange body during installation.

Technical Specifications

• Fitting Size: 3 inches
• Outer Diameter: 7.5 inches
• Class: 125 lbs
• Type: Blind
• Fitting Material: Cast Iron
• Coating: Black
• Item Weight: 7.92 pounds
• Origin: Domestic

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 308016401
