Asc Engineered Solutions 308016005 Blind Flange 2 in 125

Product Description

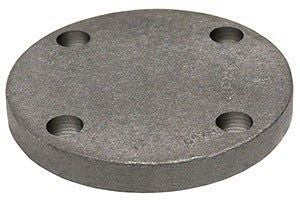

The ASC ENGINEERED SOLUTIONS 308016005 is a 2-inch Class 125 cast iron blind flange with a black coating finish. A blind flange is a solid, non-bored flange used to close off the end of a pipe, valve, or pressure vessel opening. This fitting creates a pressure-tight seal at a pipe terminus and allows future access to the line without cutting into the system. It is installed by licensed plumbers and pipefitters working on low-pressure piping systems. The Class 125 rating and cast iron construction make it a reliable choice for shutting off pipe ends in commercial and industrial piping applications.

This blind flange is suited for use in commercial plumbing, industrial process piping, and mechanical room installations where a pipe end must be capped or isolated. The 2-inch nominal size with a 6-inch outer diameter fits standard Class 125 bolt patterns. It is appropriate for water, drainage, and other compatible fluid systems operating within Class 125 pressure limits. Domestically produced, this fitting meets standard expectations for dimensional accuracy in flanged piping assemblies.

Key Features

• Solid blind design closes off pipe ends without boring, maintaining system pressure integrity
• Class 125 pressure rating suitable for low-pressure commercial and industrial piping
• Cast iron construction provides durability in mechanical and process piping environments
• Black coating finish for corrosion resistance in typical indoor piping installations
• 6-inch outer diameter conforms to standard Class 125 bolt circle dimensions
• Domestically produced for consistent dimensional quality

Compatibility

Designed as an OEM-style replacement or new-installation fitting for standard Class 125 cast iron flanged piping systems with a 2-inch nominal pipe size.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable plumbing and mechanical codes, including IPC and ASME B16.1 requirements for cast iron flanges. Shut off and depressurize the piping system completely before installing or removing any flange fitting. Use appropriate gasket material rated for the fluid service between mating flange faces. Inspect the flange face and bolt holes for debris or damage before torquing fasteners to even, alternating sequence.

Technical Specifications

• Fitting Size: 2 inches
• Outer Diameter: 6 inches
• Pressure Class: 125 lbs
• Type: Blind
• Fitting Material: Cast Iron
• Coating: Black
• Item Weight: 4.87 pounds
• Origin: Domestic

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 308016005
