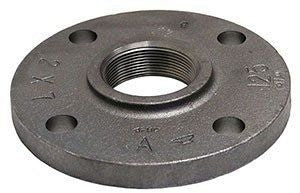

Asc Engineered Solutions 308007608 Reducing Flange 2in X 7in Od

Product Description

The ASC Engineered Solutions 308007608 is a Class 125 black cast iron reducing flange designed for pipe connections where a standard pipe bore meets a larger bolt circle or mating surface. With a 2-inch pipe size and a 7-inch outer diameter, this flange provides a reliable, rigid connection point in low-pressure piping systems. Cast iron construction delivers durability in demanding industrial and commercial environments. The black coating provides basic surface protection. This fitting is installed by licensed plumbers and pipefitters working on water, drainage, and general-service piping systems.

This reducing flange is suited for commercial and industrial piping installations where a 2-inch pipe must transition to a larger flange face or mating flange. Typical applications include water supply, circulating systems, and process piping where Class 125 pressure ratings are appropriate. At 5.98 pounds, the fitting has the mass expected of a full cast iron flange and should be supported properly during installation to avoid stress on adjacent piping.

Key Features

• Class 125 pressure rating suitable for low-pressure water and general-service piping
• 2-inch pipe size with 7-inch outer diameter for reducing flange applications
• Cast iron construction for durability in commercial and industrial service
• Black coating for basic corrosion protection
• Domestically manufactured fitting

Compatibility

Designed as an OEM-style replacement or new-installation reducing flange for Class 125 cast iron piping systems with a 2-inch pipe connection and 7-inch outer diameter bolt pattern.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable plumbing codes such as the IPC or local jurisdiction requirements. Shut off and depressurize the system completely before removing or installing any flange fitting. Use appropriate gasket material rated for the service fluid and ensure bolt holes are properly aligned before torquing fasteners. Inspect mating flange faces for damage or debris before assembly.

Technical Specifications

• Fitting Size: 2 inches
• Outer Diameter: 7 inches
• Pressure Class: 125 lbs
• Fitting Material: Cast Iron
• Coating: Black
• Type: Reducing
• Item Weight: 5.98 pounds
• Origin: Domestic

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 308007608
