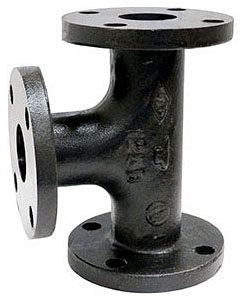

Asc Engineered Solutions 306028804 Cast Iron Flanged Tee 8 in

Product Description

The ASC ENGINEERED SOLUTIONS 306028804 is an 8-inch black cast iron flanged tee rated at 125 lb, designed for use in industrial and commercial piping systems. This fitting connects three sections of pipe at a tee junction using flanged ends, allowing for bolted connections that support periodic disassembly and inspection. At 173 pounds, it is a heavy-duty fitting suited for demanding piping installations. Licensed plumbers, pipefitters, and mechanical contractors are the primary installers of this class of fitting.

This flanged tee is applicable in commercial and industrial piping systems where a 125 lb flanged connection standard is specified. It is commonly used in water, steam, and process piping applications that require a reliable bolted flange joint at a tee branch point. The 8-inch size accommodates larger-diameter pipe runs typical of main distribution lines in mechanical rooms, industrial facilities, and municipal infrastructure projects.

Key Features

• Black cast iron construction provides durability in demanding piping environments
• 125 lb flanged ends allow bolted connections compatible with standard 125 lb flat-face flanges
• 8-inch fitting size suits large-diameter main line and branch piping configurations
• Domestically produced fitting
• Heavy-duty 173 pound construction indicates substantial wall thickness and material integrity

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 8-inch 125 lb flanged cast iron piping systems. Compatible with standard 125 lb flat-face flanges conforming to applicable ASME or ANSI flange dimensional standards where an 8-inch tee is required.

Installation Notes

Installation of flanged cast iron tees should be performed by a licensed pipefitter or plumber in accordance with applicable mechanical codes. Isolate and depressurize the pipe system completely before removing or installing any flanged fitting. Use appropriate gaskets and fasteners rated for the service conditions, and torque flange bolts according to the gasket and flange manufacturer requirements. Verify that mating flanges are properly aligned before tightening to avoid stress on the casting.

Technical Specifications

• Fitting Material: Black Cast Iron
• Fitting Size: 8 inches
• Pressure Class: 125 lb
• Item Weight: 173 pounds
• Origin: Domestic

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 306028804
