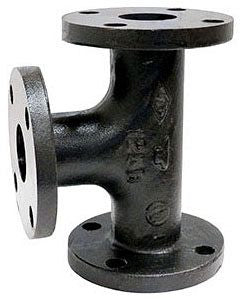

Asc Engineered Solutions 306028200 Cast Iron Flanged Tee 4 in

Product Description

The ASC Engineered Solutions 306028200 is a 4-inch Class 125 black cast iron flanged tee designed for use in piping systems that require a durable, full-bore branch connection. This fitting accepts a standard 4-inch flanged connection on all three ports and is rated for Class 125 service. Cast from black iron domestically, it is built to handle the mechanical loads common in commercial and industrial piping. Licensed plumbers and pipefitters are the primary installers. At 67.80 pounds, this is a heavy-duty fitting suited for permanent, bolted installations rather than threaded or press configurations.

This flanged tee is used in water distribution, hydronic heating, and general-purpose piping systems where a bolted flange connection is specified or required by design. The Class 125 pressure rating aligns with standard cast iron flange drilling patterns, making it compatible with typical flat-face and raised-face mating flanges in commercial and light industrial settings. Its domestic manufacture makes it an option where domestic-origin materials are called out in project specifications.

Key Features

• 4-inch nominal size with Class 125 flanged ends on all three ports
• Black cast iron construction for durability in commercial piping systems
• Domestic manufacture suitable for projects with domestic-origin requirements
• Heavy-duty design at 67.80 pounds for permanent bolted installations
• Full-bore tee configuration allows unrestricted branch flow

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 4-inch Class 125 flanged piping systems using standard cast iron flange bolt patterns.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable plumbing codes such as the IPC. Shut down and depressurize the piping system fully before removing or installing flanged fittings. Use appropriate gaskets and fasteners rated for the service class, and torque flange bolts evenly in a cross pattern per project engineering specifications. Due to the weight of this fitting, mechanical lifting assistance is recommended during positioning.

Technical Specifications

• Fitting Size: 4 inches
• Pressure Class: 125 lb
• Material: Black Cast Iron
• Item Weight: 67.80 pounds
• Origin: Domestic

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 306028200
