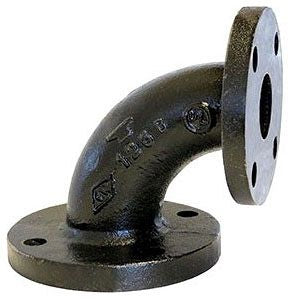

Asc Engineered Solutions 306005000 Cast Iron 90 Elbow 4x3 in

Product Description

The ASC ENGINEERED SOLUTIONS 306005000 is a flanged, short-radius 90-degree elbow fitting manufactured from cast iron with a black coating finish. Sized at 4 inches by 3 inches, this fitting is designed for directional changes in drainage, waste, and vent piping systems. At 36.60 pounds, it is a heavy-duty component built for durability in demanding plumbing installations. Licensed plumbers and pipefitters install this type of fitting in both new construction and retrofit applications where a compact 90-degree turn is required within a piping run.

This short-radius 90-degree elbow is suited for commercial and industrial plumbing systems where cast iron drainage piping is specified. The flanged end connections allow for secure, bolted assembly at the joint. Applications include horizontal-to-vertical and horizontal-to-horizontal directional transitions in drain, waste, and vent configurations. It is domestically manufactured, which may be relevant for projects with buy-domestic procurement requirements.

Key Features

• Short-radius 90-degree sweep for compact directional changes in tight piping layouts
• Flanged end connections for bolted, secure joint assembly
• Cast iron construction for long-term durability in drain and waste systems
• Black coating finish for corrosion resistance and appearance
• Domestically manufactured
• Heavy-duty weight class at 36.60 pounds indicating substantial wall thickness

Compatibility

Designed as an OEM-style replacement or new-installation fitting for flanged cast iron drainage piping systems with a 4-inch inlet and 3-inch outlet configuration.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable plumbing codes such as the IPC or local adopted equivalents. Shut off water supply and verify the line is depressurized before beginning work. Flanged connections require proper gasket seating and uniform bolt torque pattern to ensure a leak-free joint. Support the fitting adequately per code requirements to prevent stress on adjacent piping.

Technical Specifications

• Fitting Size: 4 inches X 3 inches
• Elbow Degree: 90
• Fitting Material: Cast Iron
• Coating: Black
• Item Weight: 36.60 pounds
• Origin: Domestic

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 306005000
