Asc Engineered Solutions 306001207 Cast Iron 90 Elbow 4 in

Product Description

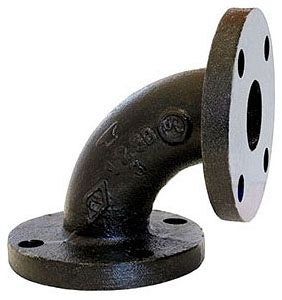

The ASC ENGINEERED SOLUTIONS 306001207 is a 4-inch short radius 90-degree flanged elbow cast in black-coated cast iron. This fitting is designed for low-velocity drain, waste, and vent (DWV) or industrial piping systems where a compact directional change is required within a tight footprint. The short radius geometry reduces the overall installation envelope compared to long-radius fittings, making it suitable for constrained mechanical spaces. At 44.40 pounds, this is a heavy-duty, domestically produced fitting intended for permanent piping installations handled by licensed plumbers or pipefitters.

This elbow is used in commercial and industrial piping applications that require flanged connections at the 90-degree turn. Flanged ends allow for bolted assembly and disassembly without cutting pipe, which is common in process piping, large-diameter drain systems, and mechanical room configurations. The 4-inch size is standard in medium-to-large commercial drain and waste lines as well as select industrial fluid-handling systems.

Key Features

• Short radius 90-degree geometry for compact directional changes in tight spaces
• Flanged ends for bolted connections, allowing future disassembly
• Black-coated cast iron construction for corrosion resistance and durability
• 4-inch fitting size fits standard medium-to-large commercial pipe schedules
• Domestically manufactured to US production standards
• Heavy-duty at 44.40 pounds, built for permanent or semi-permanent installations

Compatibility

Designed as an OEM-style flanged cast iron elbow for 4-inch piping systems requiring a short radius 90-degree turn at a flanged connection point.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Isolate and depressurize the system fully before working on any flanged connection. Flange bolts should be tightened in a cross-pattern sequence using the gasket and hardware appropriate for the service pressure and fluid type. Due to the weight of this fitting, mechanical lifting assistance or a second installer is recommended during positioning and bolt-up.

Technical Specifications

• Fitting Size: 4 inches
• Elbow Degree: 90
• Radius Type: Short Radius
• Fitting Material: Cast Iron
• Coating: Black
• Item Weight: 44.40 pounds
• Origin: Domestic

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 306001207
