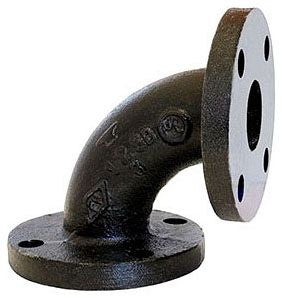

Asc Engineered Solutions 306000803 3 in Cast Iron 90 Elbow

Product Description

The ASC Engineered Solutions 306000803 is a 3-inch flanged, short-radius 90-degree elbow fitting made from black cast iron. Designed for use in Class 125 flanged piping systems, this elbow redirects flow at a 90-degree angle within the piping run. The short-radius design keeps the fitting compact in tight mechanical spaces. At 24.10 pounds, the fitting reflects the heavy-wall construction typical of cast iron flanged fittings intended for sustained service. It is installed by licensed plumbers and pipefitters working on commercial and industrial piping systems.

This elbow is suited for low-pressure piping applications common in commercial plumbing, hydronic heating, and industrial process systems that use Class 125 flanged connections. The 3-inch nominal pipe size fits standard 3-inch flanged pipe and mating flanged valves, strainers, and equipment. The black coating is applied at the factory and is standard for cast iron drainage and process piping in non-corrosive environments. Domestic manufacturing indicates the fitting meets standard U.S. dimensional requirements for flanged cast iron fittings.

Key Features

• Short-radius 90-degree elbow for compact directional changes in flanged piping runs
• Class 125 flanged end connections for bolted joint assembly
• 3-inch nominal fitting size for standard 3-inch piping systems
• Black cast iron construction for durability in low-pressure service
• Factory-applied black coating
• Domestically manufactured to U.S. dimensional standards

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Class 125 flanged cast iron piping systems using 3-inch nominal pipe.

Installation Notes

Installation is performed by licensed plumbers or pipefitters. Shut down and depressurize the piping system completely before removing or installing any flanged fitting. Proper gasket selection and bolt torque patterns should follow applicable IPC and ASME B16.1 guidelines for Class 125 flanged joints. Inspect flange faces for debris or damage before assembly to ensure a leak-free joint.

Technical Specifications

• Fitting Size: 3 inches
• Elbow Degree: 90 degrees
• Radius Type: Short Radius
• Connection Type: Flanged Class 125
• Fitting Material: Cast Iron
• Coating: Black
• Item Weight: 24.10 pounds
• Origin: Domestic

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 306000803
