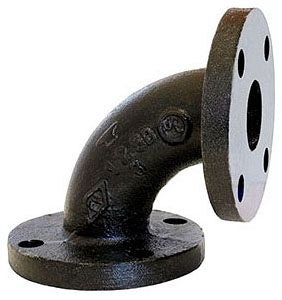

Asc Engineered Solutions 306000407 Cast Iron 90 Elbow 2 in

Product Description

The ASC Engineered Solutions 306000407 is a 2-inch flanged, short-radius 90-degree cast iron elbow rated for 125-pound service. This fitting is designed for use in drainage, waste, and vent (DWV) piping systems where a compact directional change is required. The short-radius geometry minimizes the space envelope compared to long-radius alternatives, making it practical in tight mechanical rooms and retrofit installations. A black coating provides corrosion resistance appropriate for interior applications. Domestic manufacture supports traceability requirements common in commercial and industrial projects. Licensed plumbers and pipefitters are the typical installers for this class of fitting.

This elbow is suited for commercial and industrial plumbing systems where flanged cast iron connections are specified. The 125-pound pressure class designation indicates compatibility with standard low-pressure flanged piping systems. Short-radius 90-degree elbows in this configuration are commonly installed in above-grade waste and drain piping, boiler room drain lines, and mechanical system condensate or water service runs requiring a flanged connection interface.

Key Features

• Short-radius 90-degree turn minimizes installation footprint in congested pipe runs
• 2-inch flanged end connections suit standard 125-pound flange mating
• Cast iron construction provides durability and rigidity in drainage and low-pressure service
• Black coating for corrosion resistance in interior piping environments
• Domestically manufactured for projects requiring domestic-origin documentation

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 2-inch flanged cast iron piping systems rated at the 125-pound pressure class.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable plumbing codes such as the IPC or local authority having jurisdiction. Isolate and depressurize the piping system completely before removing or installing any flanged fitting. Inspect mating flange faces for damage and use an appropriate gasket rated for the service conditions. Flange bolts should be torqued in a cross pattern to the values specified by the applicable piping standard for the flange class — do not exceed fastener ratings for 125-pound class hardware.

Technical Specifications

• Fitting Size: 2 inches
• Elbow Degree: 90
• Radius Type: Short Radius
• End Connection: Flanged
• Pressure Class: 125
• Fitting Material: Cast Iron
• Coating: Black
• Item Weight: 16 pounds
• Origin: Domestic

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 306000407
