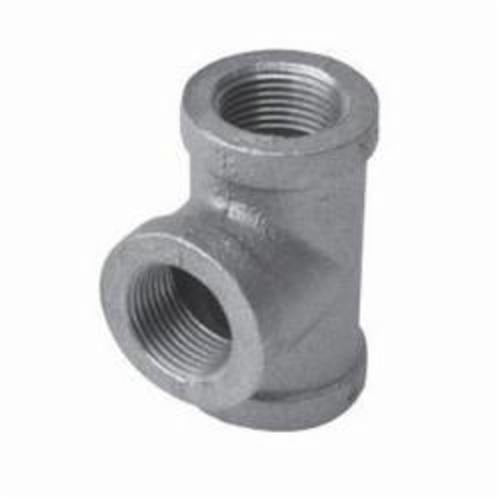

Asc Engineered Solutions 2D.NMT Pipe Tee 2-1/2 in Fnpt 150 Lb

Product Description

The ASC Engineered Solutions 2D.NMT is a 2-1/2 inch malleable iron pipe tee with female NPT (FNPT) connections rated at 150 lb. This fitting is used to create a branch connection in a threaded pipe system, splitting or combining flow at a 90-degree outlet. The galvanized finish provides corrosion resistance for use in wet or exposed environments. Domestically manufactured, this tee meets standard requirements for threaded pipe assemblies in plumbing, gas distribution, fire protection, and mechanical piping systems. Licensed plumbers and pipefitters are the typical installers for this class of fitting.

This fitting is suited for residential and commercial piping applications where a 2-1/2 inch threaded branch connection is required. Common installations include water distribution mains, gas supply lines, compressed air systems, and hydronic heating headers. The FNPT thread pattern accepts standard tapered male pipe threads on all three ports. The 150 lb pressure class makes it appropriate for low- to medium-pressure service conditions typical in commercial mechanical rooms and industrial utility lines.

Key Features

• 2-1/2 inch FNPT connections on all three ports for standard threaded pipe assembly
• 150 lb pressure class suitable for low- to medium-pressure service
• Malleable iron construction provides strength and impact resistance
• Galvanized finish offers corrosion protection in wet or exposed environments
• Domestically manufactured fitting

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 2-1/2 inch threaded malleable iron pipe systems using NPT-standard connections rated to 150 lb service class.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable codes such as the IPC or IFGC. Shut off and depressurize the system fully before making or breaking any threaded connections. Apply an appropriate thread sealant or PTFE tape to male threads before assembly. Do not over-torque the fitting, as malleable iron can crack under excessive force.

Technical Specifications

• Connection Type: FNPT (Female National Pipe Taper)
• Pipe Size: 2-1/2 inches
• Pressure Rating: 150 lb
• Material: Malleable Iron
• Finish: Galvanized
• Origin: Domestic

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 2D.NMT
