Asc Engineered Solutions 2400223786 Tube Clamp Pvc Cushion

Product Description

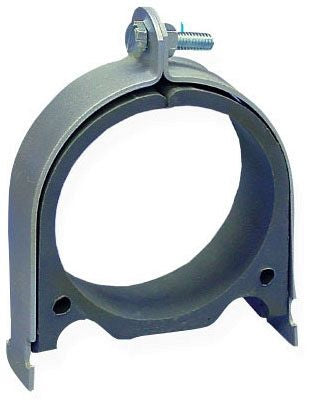

The ASC Engineered Solutions 2400223786 is a strut-mounted tube clamp with a PVC cushion, designed to secure round tubing or pipe to strut channel framing. The clamp fits 2-inch nominal tube with an outer diameter of 2-1/8 inches. The integrated PVC cushion isolates the tube from direct metal contact, reducing vibration transfer and protecting the pipe surface. This type of clamp is commonly installed by mechanical, plumbing, and HVAC contractors during pipe and tube support work in commercial and residential construction.

This clamp is used in applications where tubing or piping must be supported from strut channel systems, such as unistrut or equivalent framing. It suits horizontal and vertical tube runs in mechanical rooms, rooftop equipment installations, and interior framing applications. The PVC cushion makes it appropriate for copper, steel, or coated tubing where a cushioned bearing surface is needed to prevent abrasion or noise transmission.

Key Features

• Fits 2-inch nominal tube size with 2-1/8 inch outer diameter
• Integrated PVC cushion reduces vibration and protects tube surface
• Designed for use with standard strut channel framing systems
• Lightweight at 0.46 pounds per unit for easy handling on the job
• Suitable for copper, steel, and coated tube applications

Compatibility

Designed as an OEM-style replacement and standard fit for strut channel tube clamp applications requiring a 2-inch nominal size with a 2-1/8 inch outer diameter cushioned clamp.

Installation Notes

This clamp is typically installed by licensed mechanical, plumbing, or HVAC technicians as part of a pipe or tube support system. Ensure the strut channel is properly anchored before attaching the clamp. Follow applicable building codes and manufacturer torque guidelines for strut hardware when fastening. Inspect the PVC cushion for damage before installation to ensure proper vibration isolation and surface protection.

Technical Specifications

• Nominal Size: 2 inches
• Outer Diameter: 2-1/8 inches
• Type: Tube Clamp with PVC Cushion
• Weight: 0.46 pounds per unit

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 2400223786
