Asc Engineered Solutions 2400223778 Tube Clamp Pvc Cushion

Product Description

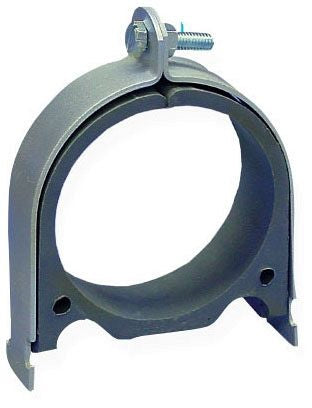

The ASC Engineered Solutions 2400223778 is a strut-mount tube clamp with a PVC cushion, designed to secure tubing to standard strut channel in mechanical, plumbing, and HVAC piping installations. The clamp fits tubing with a 1-5/8 inch outer diameter and is sized for 1-1/2 inch nominal tube. The integrated PVC cushion isolates the tube from the metal clamp body, reducing vibration transmission and protecting the tube surface from abrasion. At 0.35 pounds, it is a lightweight fastening component suited for overhead and wall-mounted strut runs.

This tube clamp is commonly used in commercial and residential mechanical systems where copper, PVC, or similar round tubing must be supported along a strut channel run. Typical applications include HVAC refrigerant line sets, hydronic piping, plumbing supply lines, and conduit support. The PVC cushion makes it a practical choice in installations where noise isolation or surface protection is a priority. Plumbers, HVAC technicians, and pipefitters install this type of hardware during rough-in and final piping phases.

Key Features

• Fits 1-5/8 inch outer diameter tubing on 1-1/2 inch nominal tube runs
• PVC cushion reduces vibration transfer and protects tube surface
• Designed for mounting to standard strut channel without additional hardware modifications
• Lightweight at 0.35 pounds for easy handling during overhead installation

Compatibility

Designed as an OEM-style replacement and standard-fit clamp for 1-1/2 inch nominal tubing on strut channel support systems in commercial and residential mechanical installations.

Installation Notes

Installation is typically performed by licensed plumbers, HVAC technicians, or pipefitters working on strut-supported piping systems. De-energize any associated systems and relieve line pressure before replacing or repositioning clamps on active piping. Standard hand tools are sufficient for most strut clamp installations. Follow applicable mechanical codes, including IPC and IFGC guidelines, for required pipe support spacing and fastener requirements.

Technical Specifications

• Outer Diameter: 1-5/8 inches
• Nominal Tube Size: 1-1/2 inches
• Type: Tube Clamp with PVC Cushion
• Weight: 0.35 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 2400223778
