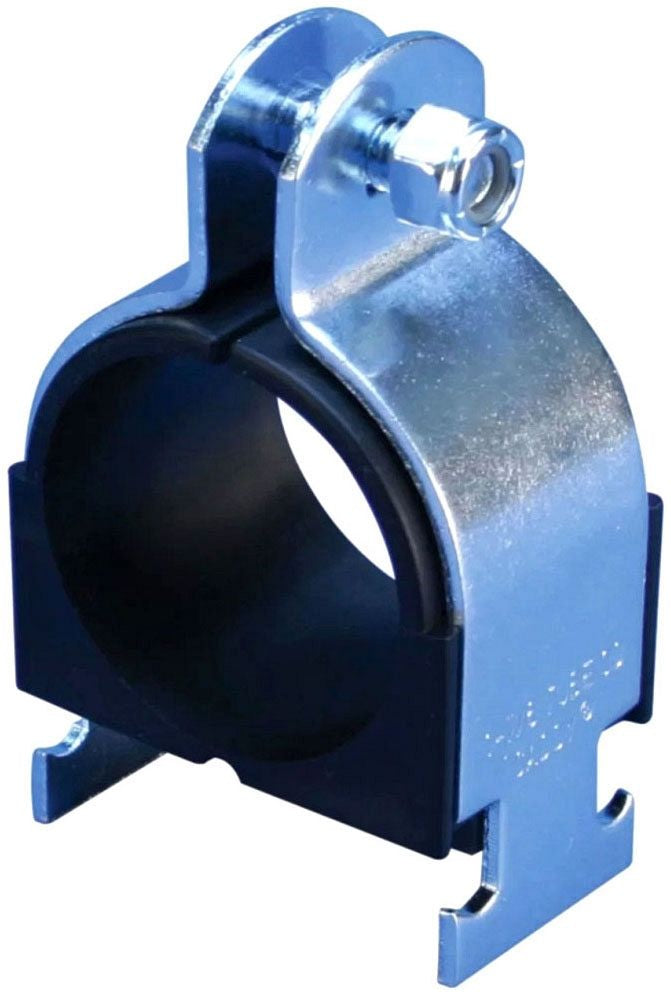

Asc Engineered Solutions 2400223760 Tube Clamp Pvc Cushion

Product Description

The ASC ENGINEERED SOLUTIONS 2400223760 is a strut-channel tube clamp fitted with a PVC cushion insert, designed to secure tubing and pipe in mechanical, plumbing, and HVAC support applications. Built for 1-3/8 inch outer diameter tubing on a 1-1/4 inch nominal tube size, the clamp mounts directly to standard strut channel (Unistrut-style) framing. The PVC cushion liner reduces vibration transmission, protects the tube surface from abrasion, and provides a degree of acoustic isolation at the support point. At 0.20 pounds per unit, it is lightweight enough for overhead and wall-mounted strut runs where load accumulation matters.

This clamp is used wherever tubing or pipe requires a cushioned, rigid support along a strut channel framework. Typical applications include HVAC refrigerant line sets, domestic water piping, process tubing, and electrical conduit support runs in commercial and residential mechanical rooms, rooftop equipment platforms, and equipment rooms. The PVC insert makes it suitable where direct metal-to-metal contact with the tube must be avoided, such as copper refrigerant or water lines subject to thermal movement.

Key Features

• Fits 1-3/8 inch outer diameter tubing on 1-1/4 inch nominal tube size
• PVC cushion insert isolates tube from direct metal contact, reducing vibration and abrasion
• Designed for mounting to standard strut channel framing
• Lightweight at 0.20 pounds per unit, suitable for overhead and stacked strut runs
• Applicable across HVAC, plumbing, and mechanical piping support installations

Compatibility

Designed as an OEM-style replacement and standard-fitment clamp for 1-1/4 inch nominal tube support on strut channel framing systems in residential and commercial mechanical installations.

Installation Notes

Installation is typically performed by HVAC technicians, pipefitters, or plumbers during rough-in or equipment support work. Secure the clamp to the strut channel using the appropriate strut nut and bolt hardware before tightening onto the tube. Do not overtighten the clamp fastener against soft tubing materials such as copper, as deformation can restrict flow or compromise the tube wall. Follow applicable mechanical codes, including IMC or IPC guidelines, for support spacing based on tube material and diameter.

Technical Specifications

• Outer Diameter: 1-3/8 inches
• Nominal Tube Size: 1-1/4 inches
• Type: Tube Clamp with PVC Cushion
• Weight: 0.20 pounds per unit

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 2400223760
