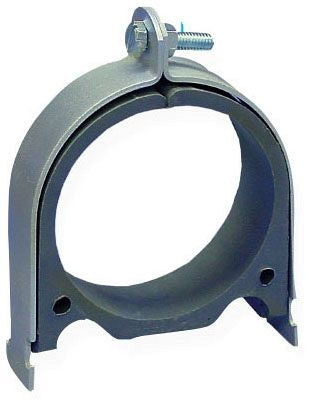

Asc Engineered Solutions 2400223745 Tube Clamp Pvc Cushion Strut

Product Description

The ASC ENGINEERED SOLUTIONS 2400223745 is a strut-mount tube clamp fitted with a PVC cushion, designed to secure tubing to standard strut channel in mechanical, plumbing, and HVAC piping installations. Built for 7/8 inch outer diameter tubing with a 3/4 inch nominal size designation, this clamp provides a cushioned grip that reduces vibration transmission and protects the tube surface from abrasion. The PVC insert absorbs movement and dampens noise, making it well-suited for copper, steel, or plastic tubing runs where direct metal-to-metal contact is undesirable. Licensed plumbers, HVAC techs, and mechanical contractors use this hardware to anchor tubing neatly and securely to unistrut or equivalent slotted channel framing.

This clamp is a standard component in commercial and residential mechanical systems where tubing must be routed and supported along walls, ceilings, or equipment frames using strut channel. Typical applications include refrigerant line support, domestic water piping, hydronic heating tubing, and general-purpose pipe runs in light commercial construction. The cushioned design is especially practical in installations where vibration from pumps, compressors, or air handlers travels through the piping system. It fits into the standard strut hardware ecosystem and pairs with common strut nuts and bolts for a straightforward, tool-friendly assembly.

Key Features

• PVC cushion insert reduces vibration transmission and protects tube exterior from wear
• Fits 7/8 inch outer diameter tubing with 3/4 inch nominal designation
• Compatible with standard slotted strut channel framing systems
• Lightweight at 0.15 pounds per unit, minimizing added load on support structures
• Suitable for copper, steel, and plastic tubing applications

Compatibility

Designed as a strut-channel tube clamp for use with 7/8 inch OD tubing on standard unistrut-style slotted channel. No specific system or model compatibility data was provided by the manufacturer for this SKU.

Installation Notes

Installation is typically performed by licensed plumbers, HVAC technicians, or mechanical contractors as part of a piping support system. Shut off and depressurize any active line before adjusting or repositioning clamps on live piping. Pair with appropriate strut nuts and hardware rated for the intended load and pipe content. Follow applicable local mechanical codes and manufacturer torque guidance for strut hardware when securing the assembly to the channel.

Technical Specifications

• Outer Diameter: 7/8 inches
• Nominal Size: 3/4 inches
• Type: Tube Clamp with PVC Cushion
• Item Weight: 0.15 pounds per unit

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 2400223745
